Zigbee transceiver with ESP32 - ZUL

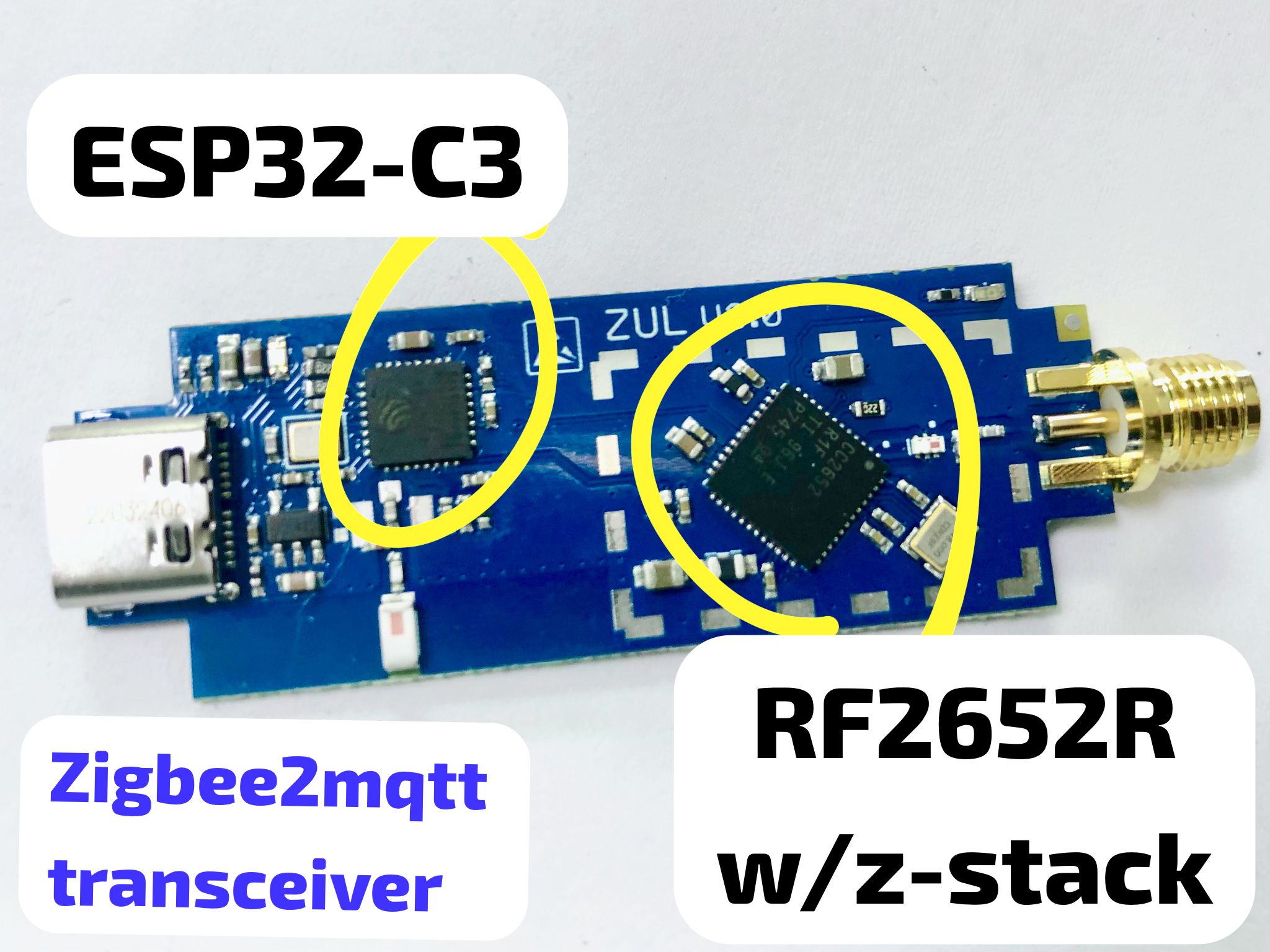

Zigbee transceiver with ESP32

General

ZUL is a Zigbee transceiver with USB and WiFi Bluetooth connectivity. Have a look at this modules Image Gallery …

Specs

Documents

Firmware

use: web browser-based ZUL-Firmware Installer

USB-serial emulation: ** goto Firmware Installer page - and choose “USB-serial emulation” ** example source code: serial transparent example ** CC2652 will be available at /dev/ttyACMx. i.e. in m2z use:

port: /dev/ttyACM0

simple WiFi-bridge: ** goto Firmware Installer page - and choose “WiFi-bridge” ** follow regular setup procedure - make sure you setup working WiFi connection and “visit device” to find its IP address ** Bridge will be mDNS-announced as “_zstack._tcp” - avahi-browse _zstack._tcp -rt ** CC2652 is available at TCP port 2326. i.e. with z2m use:

port: tcp://:2326

without docker you may use:

port: mdns://zstack

Tasmota TCP bridge: ** goto Firmware Installer page - and choose “Tasmota” ** follow regular Tasmota setup procedure ** finally goto “Auto-configuration” and choose “Busware ZUL” from dropdown - (this will load this Configuration) ** TPUART will be available at TCP port 2326. i.e. with z2m use:

port: tcp://:2326

Availability/Price

This device is available form our shop.
