The open-source WiFi-Tally-Light is a small rechargeable-battery powered WiFi 2,4GHz device.

WiTally - a WiFi Tally system

General

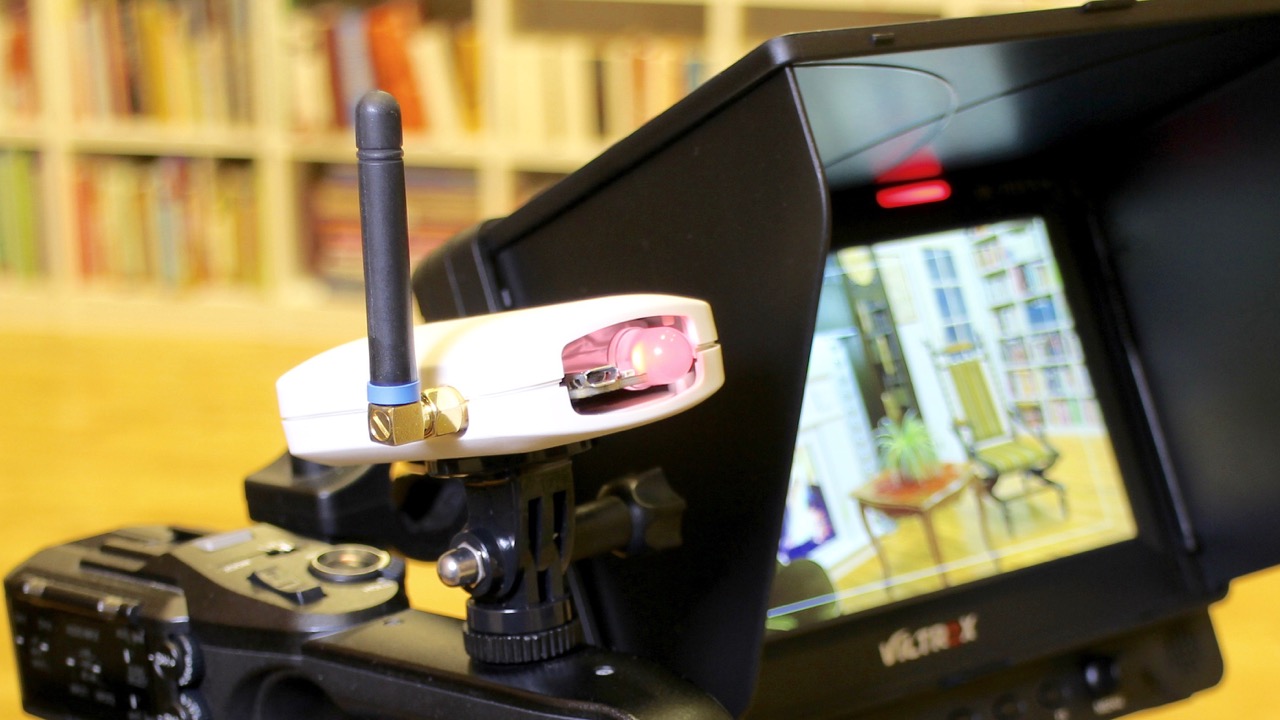

The open-source WiFi-Tally-Light is a small rechargeable-battery powered WiFi 2,4GHz device. On its front and back there are 10mm red/green LED - plus a 2,5mm jack for external tally - as seen here the DC-70EX field monitor. Program the device using Arduino-ESP8266-IDE. Use SKAARHOJ-libraries to easily access ATEM switchers. In addition the device features a digital Accelerometer and magnentometer/compass to automatic control PTZ cameras. The built-in rechargeable-battery gives you 8 hrs of operation and will be recharged using the micro USB port - also used as serial interface to the ESP-controller and device programming.

see:

• image gallery

Specs

• ESP8266 core
• RP-SMA antenna socket
• CP2101 serial 2 USB bridge
• LiPo battery (1200mAh) and charger
• Accelerometer and magnentometer
• Power slide switch
• 2+2 LED / 1 Button
• 2,5mm stereo jack for external Tally

Availability

This device will be available mid Feb’18 in our shop
