This module glues an TPUART EIB/KNX bus coupler using Bluetooth-SPP - (serial port profile) to any bluetooth enabled host - like an RPi3.

TBL - TPUART to Bluetooth-SPP

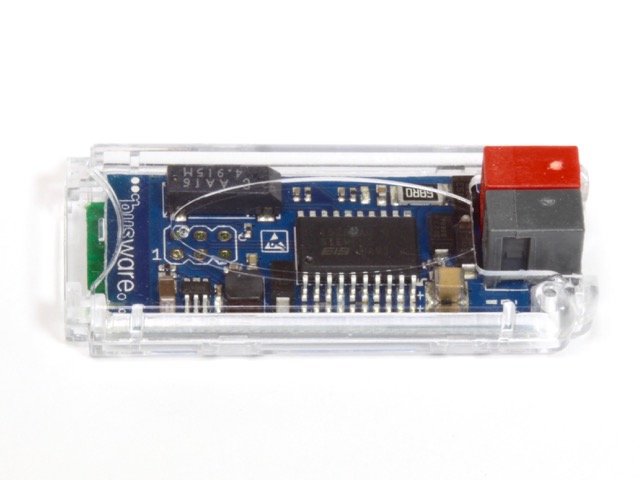

TBL Bluetooth module - no USB anymore

General

This module glues an TPUART EIB/KNX bus coupler using Bluetooth-SPP - (serial port profile) to any bluetooth enabled host - like an RPi3.

Be aware: Forwarding TPUART data via Bluetooth-SPP is adding a slight delay. Therefor timecritical stuff as programming devices wont work.

Have a look at this modules Image Gallery

Specs

TPUART with transparent Bluetooth-SPP forwarding
Bus powered - no additional powersupply needed

Usage (on Raspberry 3 + Jessie)

# Adapter einmalig “pairen” und “trusten” bluetoothctl â¢ agent on â¢ default-agent â¢ scan on â¢ watchout for “BUSWARE-TBL” address â¢ pair xx:xx:xx:xx:xx â¢ enter “PIN” as shown on TBL-backside label â¢ trust xx:xx:xx:xx:xx â¢ exit

# /dev/rfcomm erzeugen rfcomm connect 0 xx:xx:xx:xx:xx

# Knxd starten: knxd -e 1.1.250 -E 1.1.251:254 -i -D -T -R -S -t65335 -b tpuarts:/dev/rfcomm0

# was schalten: knxtool groupswrite ip:localhost 11/0/0 0

Layer 2(0149A128,583D8300) Send L_Data low from 1.1.251 to 11/0/0 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 01 Layer 0(0149A128,583D8300) Write(018): 80 BC 81 11 82 FB 83 58 84 00 85 E1 86 00 87 81 48 91 Layer 0(0149A128,583D8300) RecvB(001): BC Layer 0(0149A128,583D8300) RecvB(007): 11 FB 58 00 E1 00 81 Layer 0(0149A128,583D8300) RecvB(002): 91 8B Layer 0(0149A128,583D8300) Ignoring this telegram. We sent it. Layer 2(0149A128,583D8302) Send L_Data low from 1.1.251 to 11/0/0 hops: 06 T_DATA_XXX_REQ A_GroupValue_Write (small) 00 Layer 0(0149A128,583D8302) Write(018): 80 BC 81 11 82 FB 83 58 84 00 85 E1 86 00 87 80 48 90 Layer 0(0149A128,583D8302) RecvB(001): BC Layer 0(0149A128,583D8302) RecvB(007): 11 FB 58 00 E1 00 80 Layer 0(0149A128,583D8302) RecvB(002): 90 8B Layer 0(0149A128,583D8302) Ignoring this telegram. We sent it. Layer 2(0149A128,583D830A) Watchdog Status(001): 02 Layer 0(0149A128,583D830A) RecvB(001): 07 Layer 0(0149A128,583D830A) RecvWatchdog: 07
