SOMPI SOMPI
Eingestellt / EOL
Combining the power and software-ease of community proven embedded boards like: BananaPi, Cubie, OLinuXino, PCDUINO3 and others we developed a small sized modul

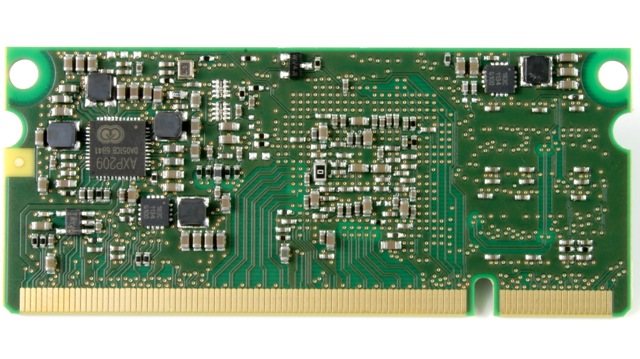

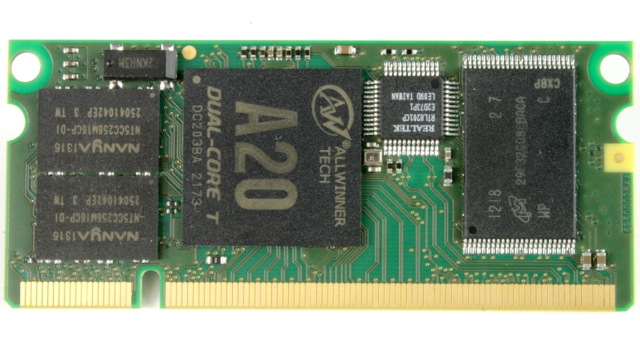

SOM Pi - an A20 based system-on-module in SODIMM-200 shape
General
Combining the power and software-ease of community proven embedded boards like: BananaPi, Cubie, OLinuXino, PCDUINO3 and others we developed a small sized module with such core hardware components. Your own PCB design must simply 5V-power the SOMPi and can get connected by just wiring an Ethernet socket. All needed I/O is available at the 200pins of a standard SODIMM-Module
see:
- image gallery
- short film showing prototype manufacture
Specs
- A20 Dual core 1GHz
- RAM 512MB up to 2GB
- onboard NAND Flash 4GB
- onboard Ethernet PHY
at the 200 pins:
- single 5V supply
- dual USB host & USB OTG
- 10/100MBit Ethernet
- HDMI out
- onboard power management and 2.8V/3.3V out
- Battery connector
- JTAG
- dedicated Debug-UART
- up to 6 additional UARTs (2x with RTS/CTS)
- 2x I2C bus
- 2x SPI w/ 2x CS each
- 2x PWM
- 2x ADC
- 1x CAN
- 2x LVDS bus
- 1x SATA
- 1x CSI bus
- analog audio IN/OUT
- digital audio I2S/PWM
- 2x SD card interface
- Infrared RX/TX
- 18x GPIO
- resistive touch screen interface
Price & availability
This module is available from In-Circuit GmbH starting 59 Euro.
