RF69USB RF69USB
Eingestellt / EOL
This module glues an RF69 (RFM12B compatible) wireless radio transceiver module to USB 2.0.

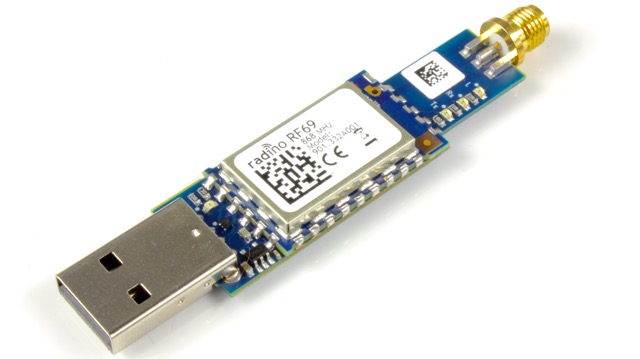

RF69 USB light - Stick
General
This module glues an RF69 (RFM12B compatible) wireless radio transceiver module to USB 2.0. The module is Arduino-Leonardo compatible. So you may use Arduino IDE to program it.
The radio itself is internally connected alike:
//RFMxx::RFMxx(byte mosi, byte miso, byte sck, byte ss, byte irq) { RFMxx rfm(16, 14, 15, 8, 7);
Specs
- RFM69W
- ATmega32u4 @ 8MHz
- USB A male connector
- Whip or SMA antenna
- dual LED
- Arduino bootloader - allows flashing firmware by using USB
- optional: 2x3pin 100mil ISP feature connector
- optional: plastic case
Documents
Firmware
Price and availability
This module is no longer available in our shop
