RF212USB RF212USB

Eingestellt / EOL

This is similar to Atmels RAVEN USB (2,4GHz) Stick, but for 800/900MHz

AT86RF212 based USB-Stick (HUL)

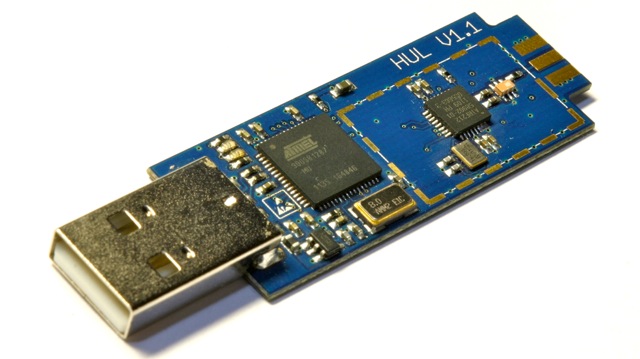

RF212 Transceiver with USB processor

General

End-Of-Life This is similar to Atmels RAVEN USB (2,4GHz) Stick, but for 800/900MHz

Specs

AT90USB1286/7 processor 8MHz @ 3.3V
AT86RF212 868MHz-DSSS-transceiver - 802.15.4 for 6LoWPAN or ZigBeeâ¢
Wire antenna or SMA socket
HF-shield available
green led, red led
microswitch
shipped with dfu-bootloader to upload firmware using USB
plastic housing available
ISP/JTAG/UART pinheader

Documents

schematics
3D model view: Top / Bottom
DSSS-Transceiver AT86RF212

Software

Contiki / HexaBus
Ported and tested with Atmels Route Under MAC (RUM) with IPv6 and 6LoWPAN
IEEE802.15.4/ZigBee Stack for Linux

Availability/Price

This module is no longer available
