PIGATOR PIGATOR

Eingestellt / EOL

- more information soon -

PIGATOR

• more information soon -

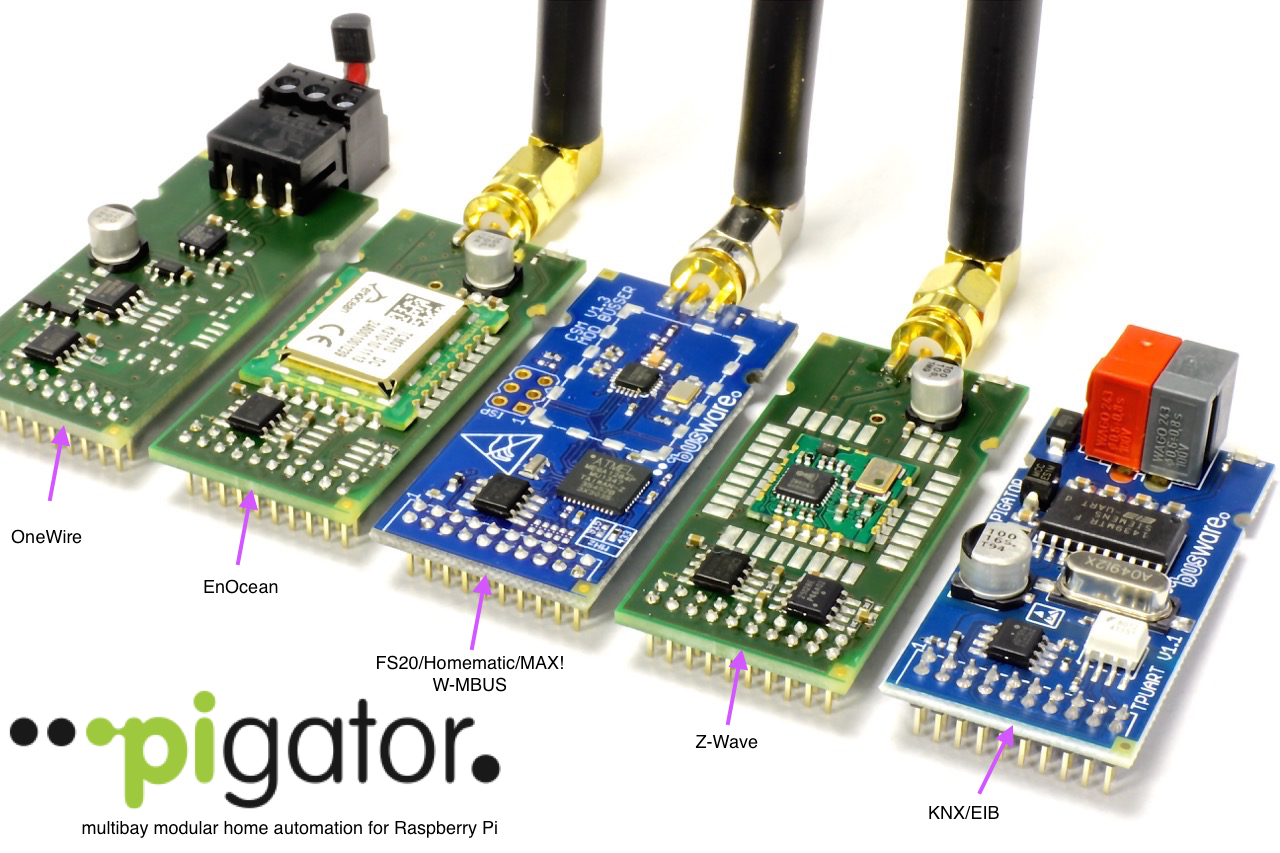

available modules:

• CC1101 for FS20/Homematic/MAX!/WMBUS etc.
• Onewire
• Z-WAVE
• EIB/KNX

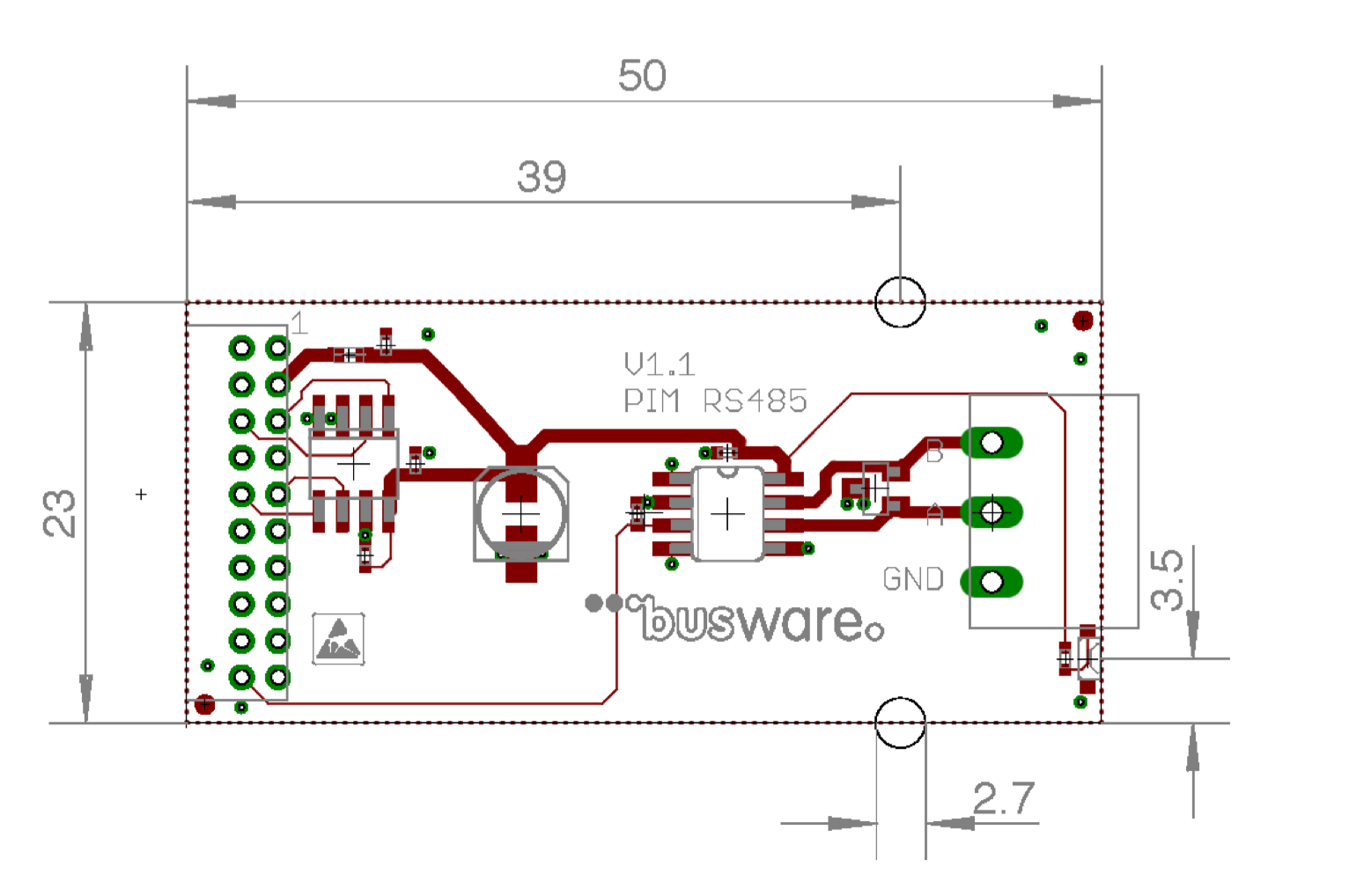

• RS485
• 2ch S0-meter-interface
• proprietary Homematic-UART module
• BLE-Scanner
• GSM modem
• CAN
• wired MBUS
• DALI Find them here in the shop.

available carriers:

• Raspberry HAT-style: **Pigator Single - is just an Raspberry-to-Pigator modul adapter with no additional functionality **Pigator OneWire HAT

• Raspberry for DIN-rail ** Pigator-Onewire-RTC on DIN rail

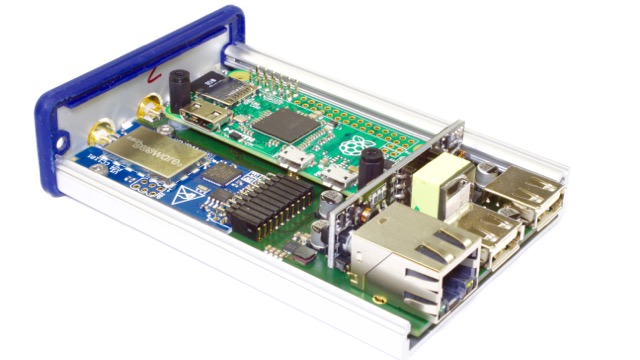

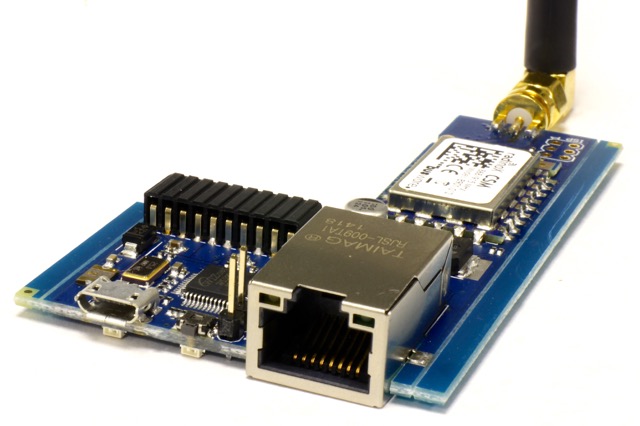

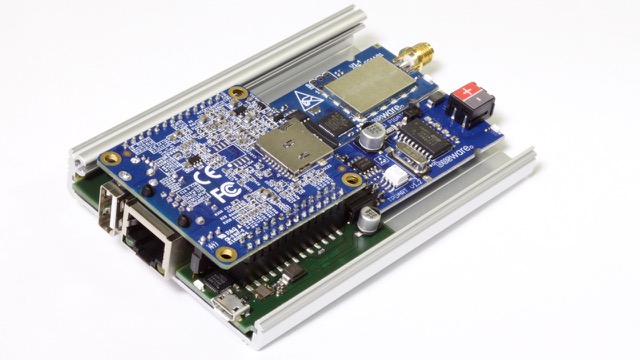

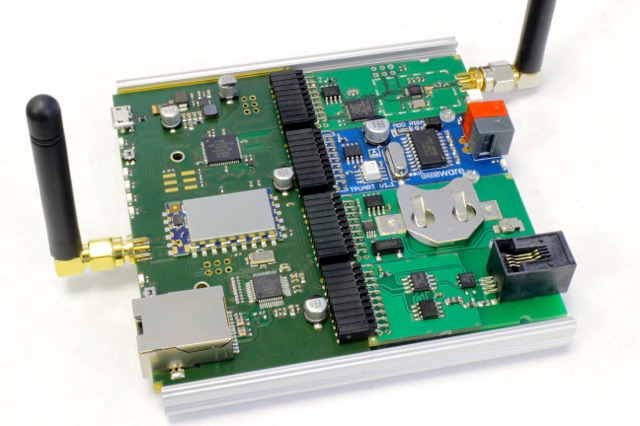

• non-Raspberry: **NMC - networked modul carrier **Tuxradio version 4 **NMC2 - networked modul carrier - V2 w/WiFi & Bluetooth **BUSSER - Wifi-USB-Network access to 4/8 PIGATOR slots **CUNX

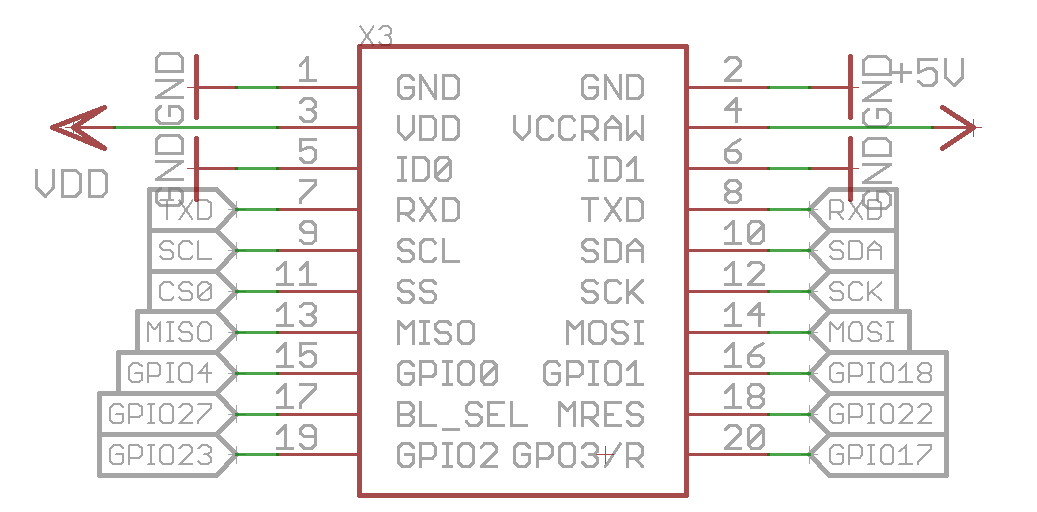

Modul connector

All modules use the same pinout on 2x10P 2.00mm header. Modul carriers dedicate an UART, I2C, SPI and several GPIOs to each slot. Example below:
