The small device glues a RFM9X-LoRa-Module and ESP8266 WiFi-SOC into a single channel paket forwarder to TTN or similar.

LoRa-USB-WLAN - LUW

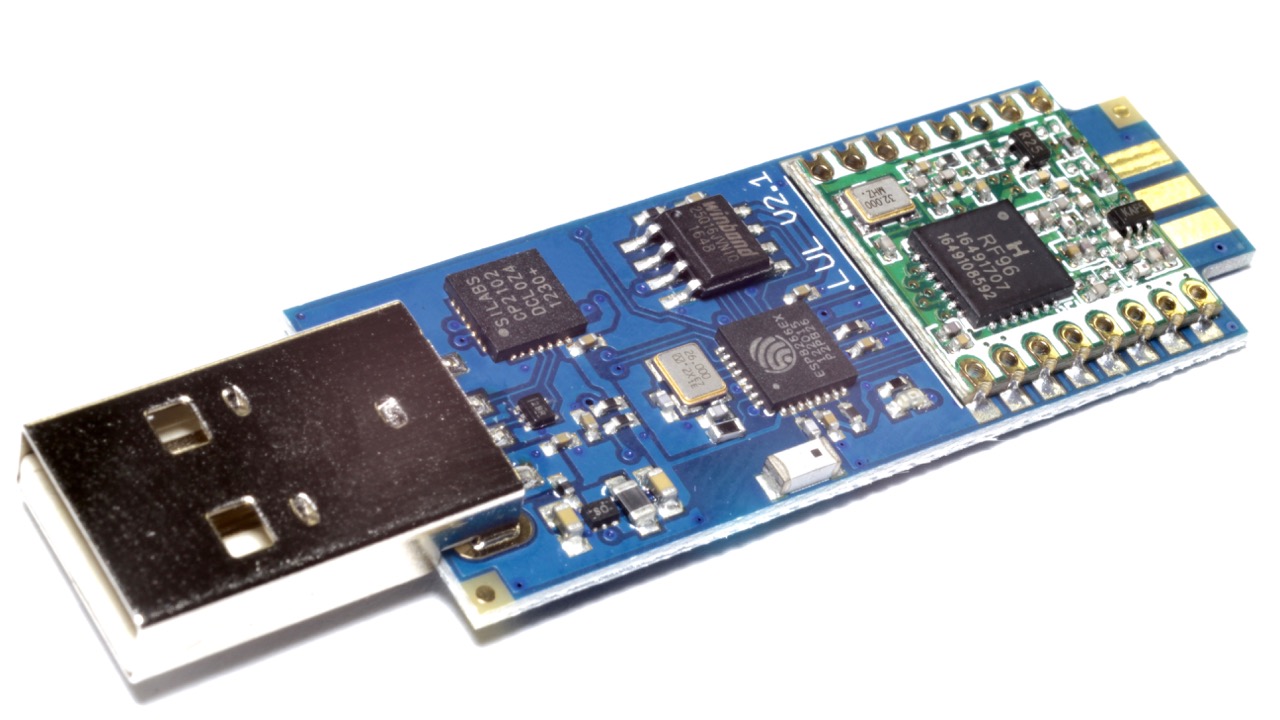

"LUW

General

The small device glues a RFM9X-LoRa-Module and ESP8266 WiFi-SOC into a single channel paket forwarder to TTN or similar. The ESP is accessible through onboard USB-Serial-bridge.

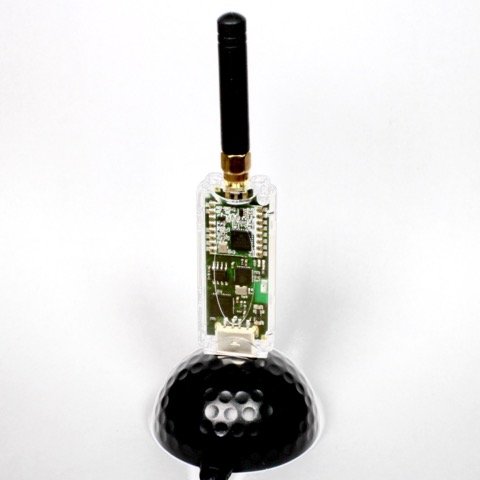

LUW in USB dock w/ RP-SMA +3dBi antenna Have a look at this modules Image Gallery

Specs

RFM95 module or similar
ESP8266 SOC
2.4GHz WIFI 802.11b/g/n
2MB Flash
serial SOC access via CP2102 USB bridge
PRG-button to enter flash mode
Status LED on GPIO2
plastic enclosure

Documents

LUW21.pdf - schematics

Implementations/References

https://github.com/esp8266/esp8266-wiki/wiki - Arduino for LUW
https://github.com/JaapBraam/LoRaWanGateway - Single channel gateway to TTN using NodeMCU/Lua

Availability

This unit is available in our shop
