There are several versions of LUFA test boards:

LUFA test boards

There are several versions of LUFA test boards:

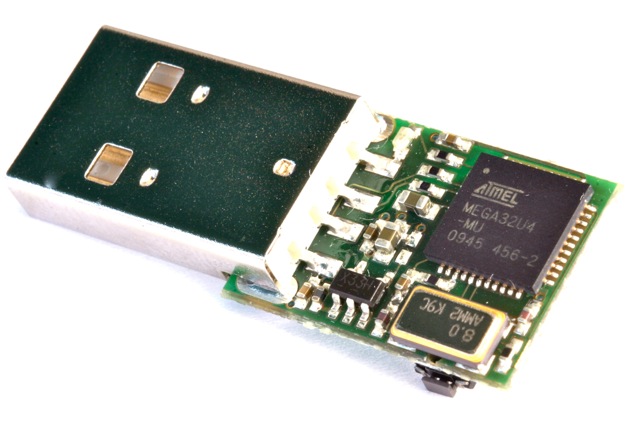

ATmega32U4

• Schematic
• available in our shop
• Normally covered in Polyolefin shrink tubes - no hard case available
• 8MHz
• LED is at PE6 - non inverting

LUFA makefile settings:

MCU = atmega32u4 BOARD = CULV3 F_CPU = 8000000

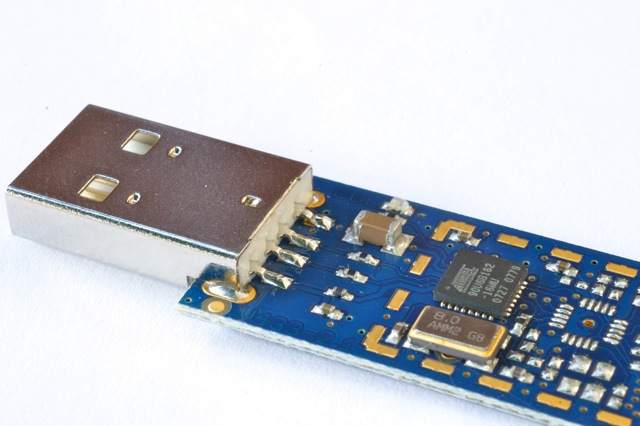

AT90USB162 - CUL433 based

• Schematic
• no longer available in our shop
• Normally covered in Polyolefin shrink tubes - no hard case available
• 8MHz
• LED is at PC4 - non inverting

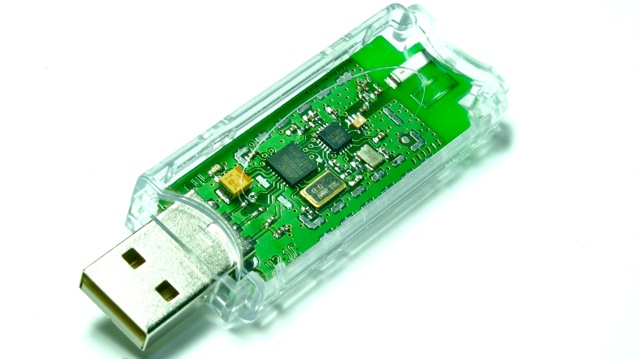

AT90USB162 - CULV21C based

• Schematic
• no longer available in our shop
• hard case available
• 8MHz
• LED is at PC4 - non inverting
