kWh-Logger-V3 KWH-LOGGER-V3

Eingestellt / EOL

This version is obsolete! See current Logger version.

4 channel S0-data logger with embedded Linux core

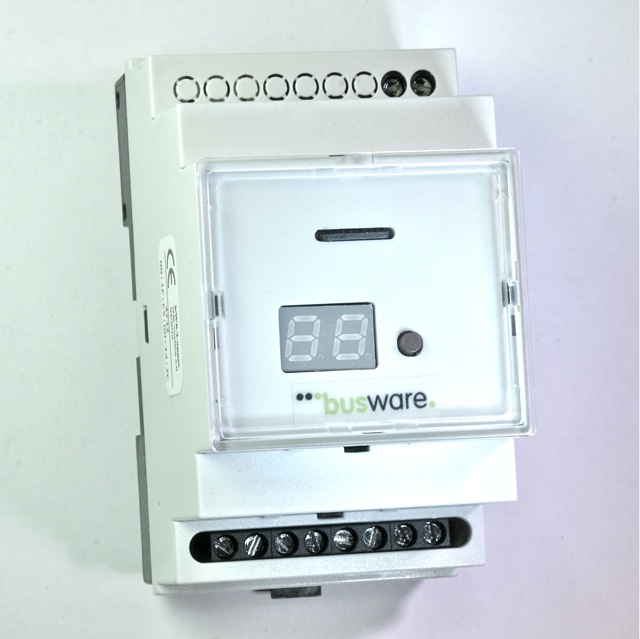

DIN rail module (Version 3)

This version is obsolete! See current Logger version. Previous Logger Version 2 pages.

General

Have a look at this modules Image Gallery

Specs V3

4 x S0-interface after DIN 43864 EN 62053-31
24V= / 1.6 Watt
Plugable processor board: AVR32
MicroSD card slot
10/100 Base-T ethernet
buffered RTC with NVRAM
two-digit front display, switch
fits into 3TE DIN rail case
optional 433/868/2400 MHz radio socket - see: CSM
optional horizontal bus extender

Documents

Blockschaltbild

supported devices

Electricity: Power meters with S0 Interface
Water: Flow meters with Reed-contact

Firmware

openembedded Angström - Linux 2.6.28

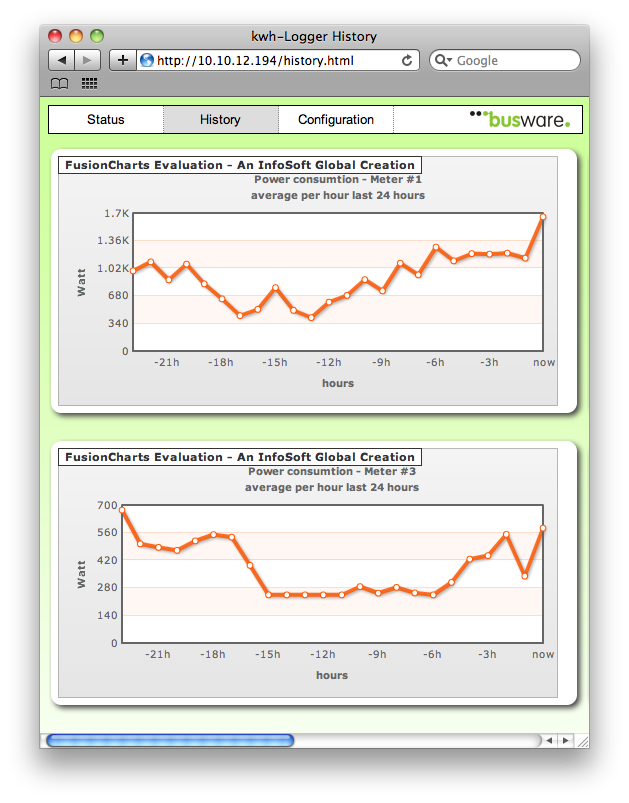

Screenshots

Availability/Price

This logger is no longer available in our shop
