kWh-Logger-V2 KWH-LOGGER-V2
Eingestellt / EOL
This version is obsolete! See current Logger version.
4 channel S0-data logger with Ethernet, with SD card and USB interface
This version is obsolete! See current Logger version.
General
This device interfaces 4 S0-channels and can be used as standalone data logger to MicroSD card and/or ethernet bridge.
With a port of EtherSex firmware its IPv4 and IPv6 compliant. Data written onto MicroSD card as well as actual tick-counts for each channel can be accessed using ordinary web browsers.
The built-in (backup’d) Real Time Clock will timestamp all logged data and is syncronized using NTP.
This device is powered by 230V AC @ 1.5W.
Firmware is updatable from SD card or via USB using common dfu-programmer or FLIP.
Have a look at this modules Image Gallery
Specs V2
- 4 x S0-interface after DIN 43864 EN 62053-31
- AT90USB1286 processor 8MHz @ 3.3V
- native USB2.0 interface
- MicroSD card slot
- ENC28J60 Ethernet
- 230V / 3Watt power supply (1.5W true power)
- RTC with NVRAM
- external EEPROM with unique E48 identifier
- Switch // 6 LED
- FPC-ISP connector (adapter needed)

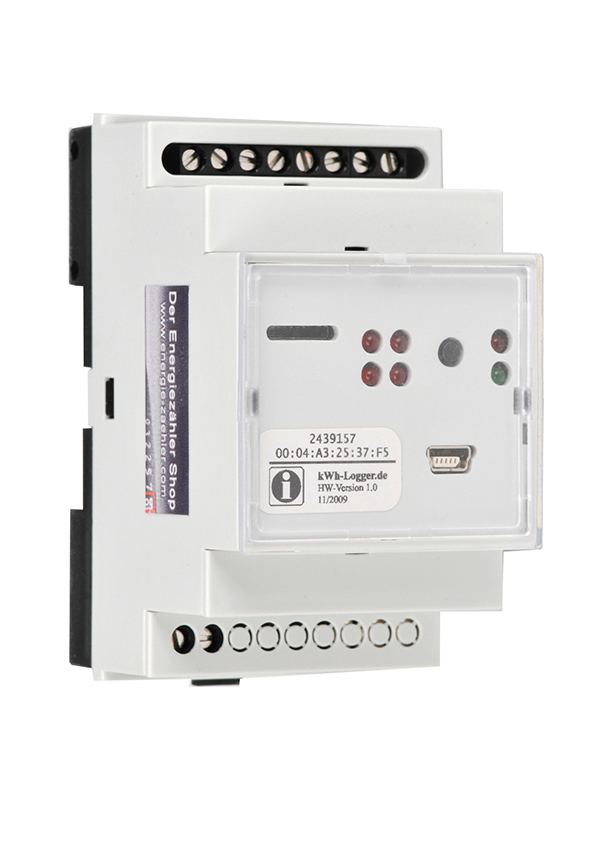

- fits into 3TE DIN rail case
Documents
supported devices
- Electricity: Power meters with S0 Interface
- Water: Flow meters with Reed-contact
Firmware
- This device is running on a special EtherSex-port
