KNX-IP KNX-IP

Eingestellt / EOL

You can use the TUL V3 directly with platforms like Home Assistant. Thanks to OpenKNX stack, the device functions as a wireless KNX/IP coupler over Wi-Fi. This

TUL V3 (ESP32) with KNX/IP for Wireless Home Assistant Integration

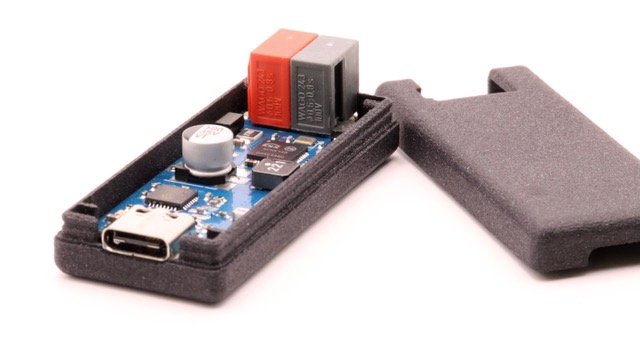

TUL V3.1 with housing

You can use the TUL V3 directly with platforms like Home Assistant. Thanks to OpenKNX stack, the device functions as a wireless KNX/IP coupler over Wi-Fi. This eliminates the need for a separate knxd installation. Simply place the TUL V3 within your Wi-Fi coverage area and connect it to the KNX TP bus.

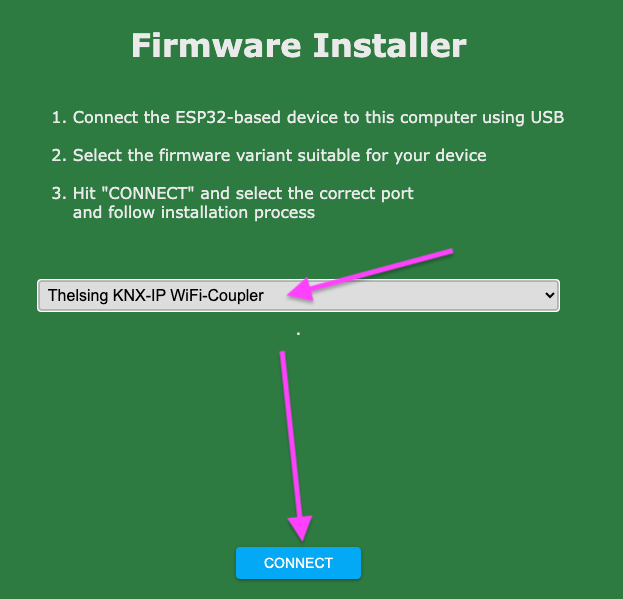

** find example here on github ** goto TUL-Firmware Installer page - and choose “KNX/IP for TUL”

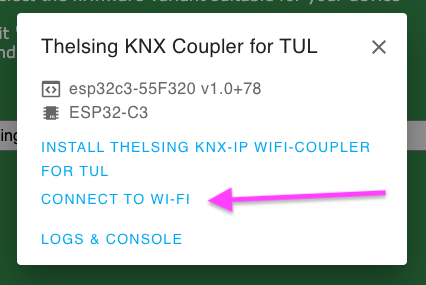

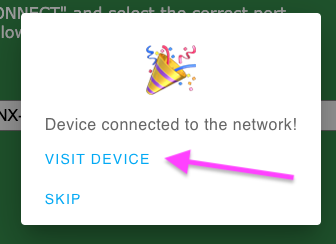

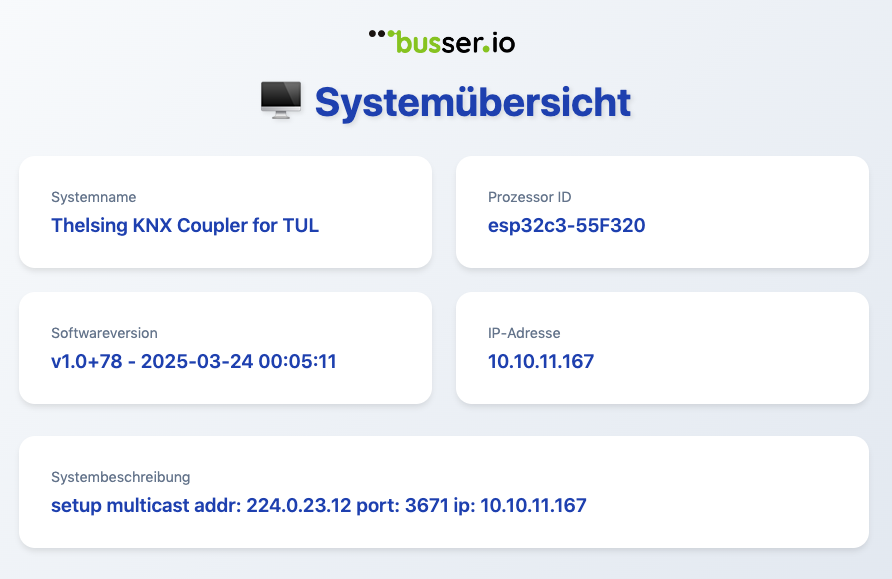

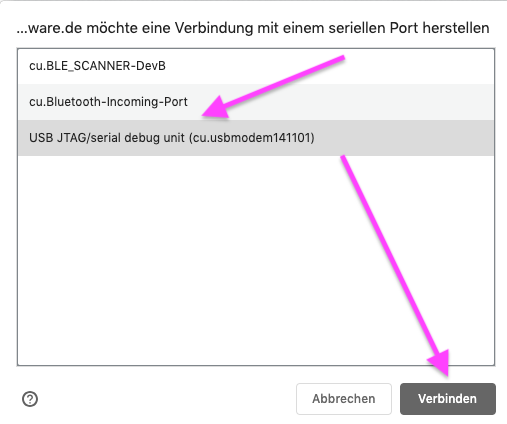

select select select select find the TUL's ip address in case you need to setup UDP tunnel manually

** Move on to Homeassistant and continue common KNX installation.

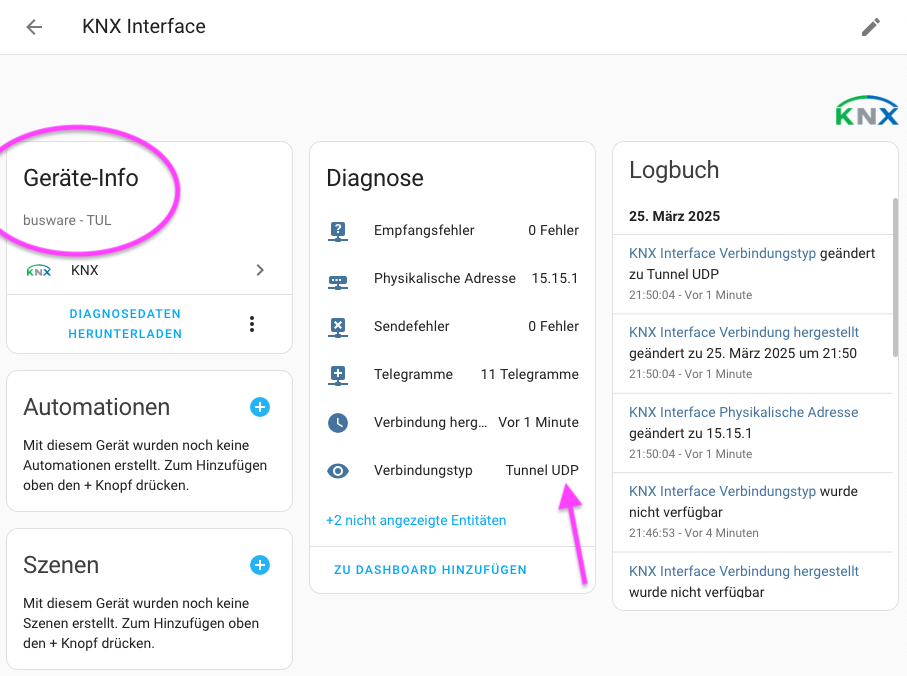

Status

References

** excellent OpenKNX stack ** Implementation for TUL on github
