IRH - Infrared Reading/Writing Head

General

This reader combines a IR transceiver, CC1101 based radio and powerful xmega with native USB support.

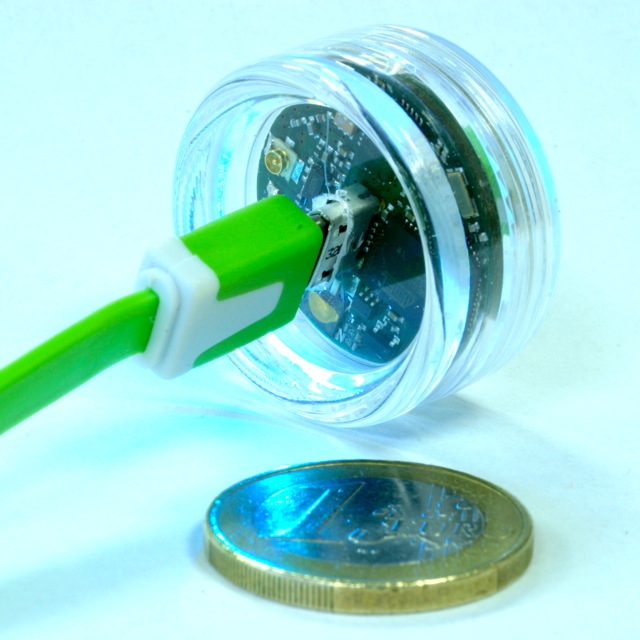

The mirco-USB cable is directly plugged into the IRH and powers it.

The CC1101 radio connects to a U.FL/IPEX socket.

see:

• image gallery

Specs

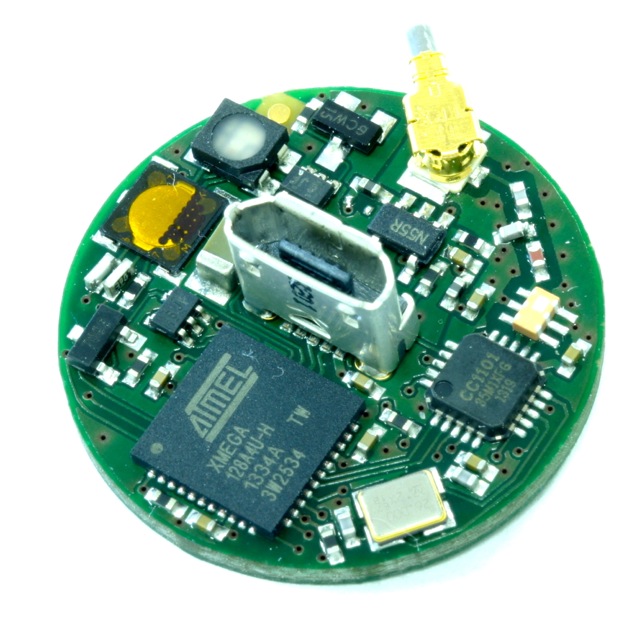

• 800-900nm IR receiver / transmitter
• CC1101 radio frontend (433/868/915MHz)
• ATXMEGA128A4U
• microUSB socket
• RGB-LED
• Microswitch
• DFU bootloader

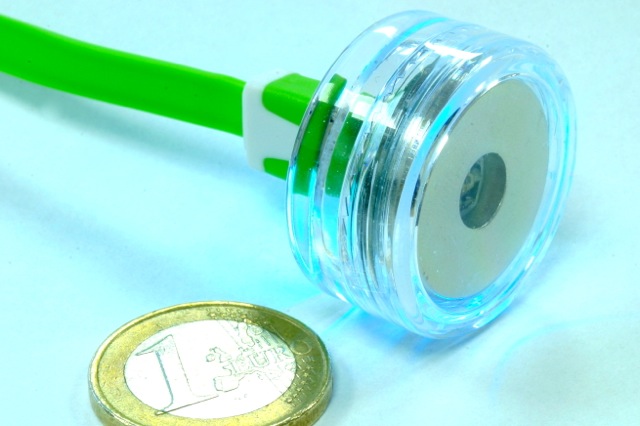

• ring magnetic front
• transparent acryl housing

Firmware

• use: web browser-based Firmware Installer

USB-serial emulation: ** goto Firmware Installer page - and choose “USB-serial emulation for TCM515 (EUL)” ** example source code: serial transparent example

Tasmota Smart Meter Interface: ** goto Firmware Installer page - and choose “Tasmota for busware gadgets” ** follow regular Tasmota setup procedure ** finally goto “Auto-configuration” and choose “Busware IRH” from dropdown ** example script for EasyMeter

np

D B =>sensor53 r =>sensor53 l4 M 1 +1,20,o,0,9600,SML,1 1,1-0:1.7.255255(@1,P_in,W,P_in,18 1,1-0:21.7.255255(@1,L1,W,L1,18 1,1-0:41.7.255255(@1,L2,W,L2,18 1,1-0:61.7.255255(@1,L3,W,L3,18 1,1-0:1.8.0255(@1,E_in,kWh,E_in,19 1,1-0:2.8.0255(@1,E_out,kWh,E_out,19 1,1-0:0.0.0255(@1,Netzbetreiber-ID,,NetID,0 1,0-0:96.1.255255(@#),Seriennummer,,serial,0
