Homematic-USB-Light - HmUL

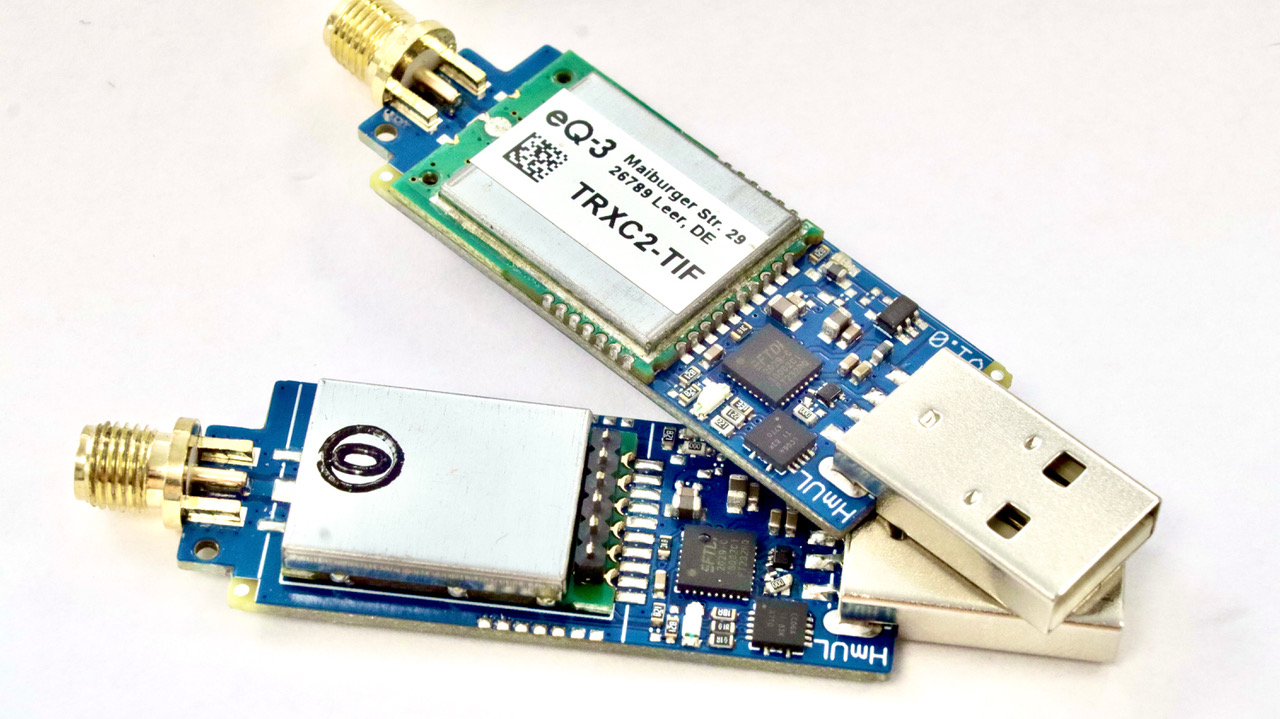

USB carrier board for different Homematic RF modules

General

This USB board carries either RPI-RF-MOD or HM-MOD-UART and interfaces them via a FT232R converter.

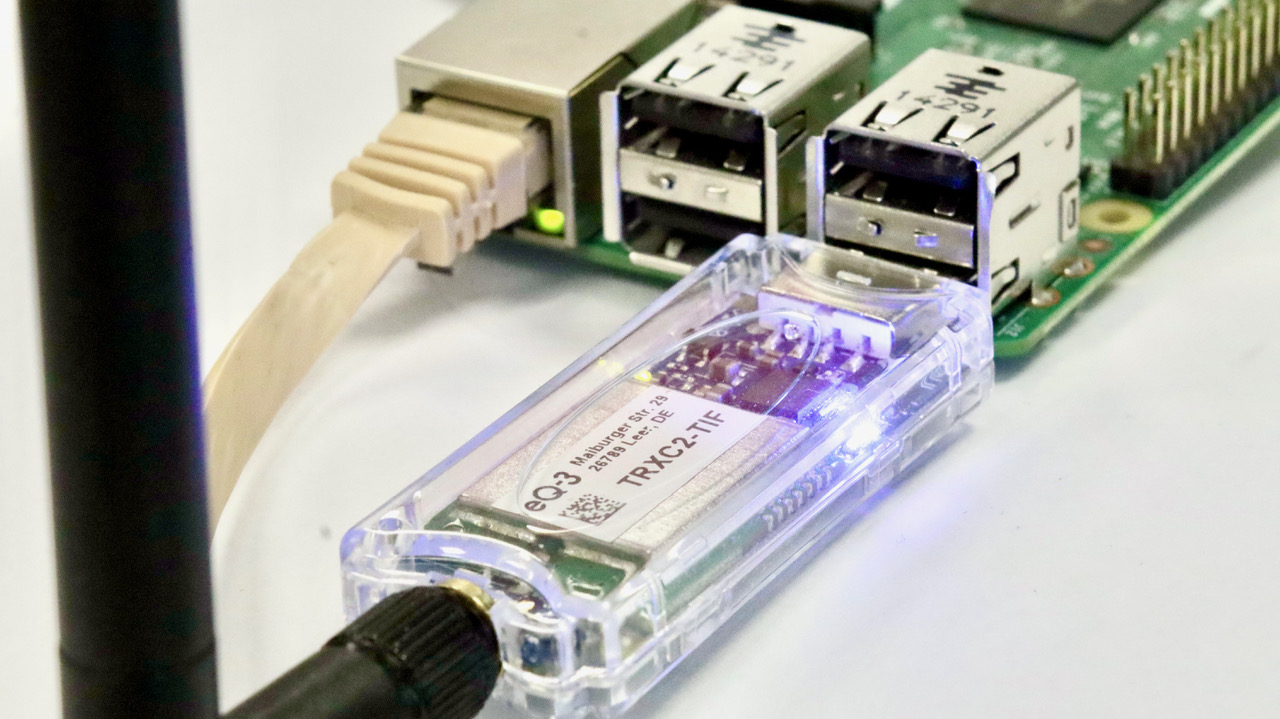

HmULIP w/ plastic case and RP-SMA antenna Have a look at this modules Image Gallery

Specs

RPI-RF-MOD or HM-MOD-UART
FTDI FT232R USB -> UART converter
Reset logic
3 color LED
RP-SMA socket
plastic enclosure

Documents

HmUL12.pdf - schematics

Implementations/References

https://busmatic.de - BusMatic

HB-RF-USB clone

To make this hardware act as HB-RF-USB device supported by RaspberryMatic (or similar) you’ll need to set FT232R eeprom values accordingly - as given here.

Windows instructions: FT_Prog:
Linux: ft232r_prog (ft232r_prog —dump —new-pid 0x6f70 —old-pid 0x6bf0 —manufacturer “Alexander Reinert” —product “HB-RF-USB”)

Availability

Samples available in our shop
