FPM FPM

Eingestellt / EOL

This DIL24-footprint-device will supply power, RX and TX data from the bus and also has a powerful mircocontroller on board.

Freebus Coupler - with AVR and voltage regulator

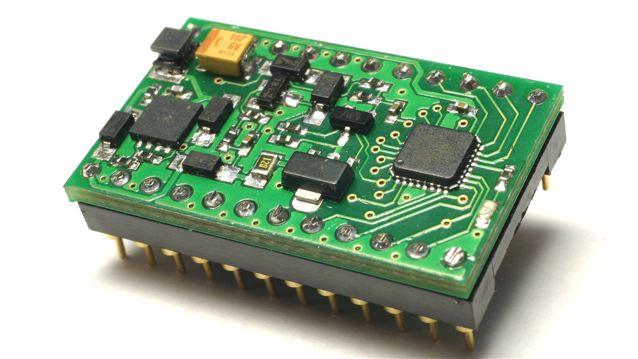

Prototype V1.1

General

This DIL24-footprint-device will supply power, RX and TX data from the bus and also has a powerful mircocontroller on board.

The switching step-down regulator provides 3.3V to the on board components and customers periphery.

The on board ATmega88 is used to implement the bus protocol. Certain of its I/O is also available on the DIL24 socket.

A FPM-host-board will provide a Freebus-, ISP- and PORTD connector, as well as a switch and a LED. This is all you need to start developing your first Freebus actor or sensor or your own application rapidly.

Have a look at this modules Image Gallery

Specs
