EUL1x EUL1X

Eingestellt / EOL

This module glues an EnOcean TCM310 transceiver to USB 2.0. The freely programmable microcontroller allows any kind of USB device favours. This hardware is not

EUL - EnOcean USB light - TCM310

General

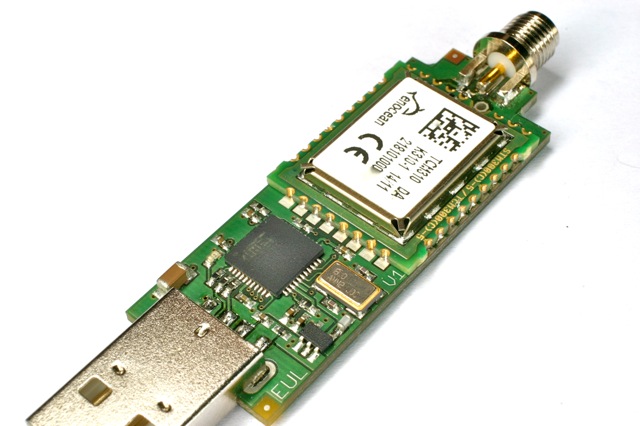

This module glues an EnOcean TCM310 transceiver to USB 2.0. The freely programmable microcontroller allows any kind of USB device favours. This hardware is not just a serial-USB-bridge as many other EnOcean-USB-devices.

Have a look at this modules Image Gallery

Specs

• TCM310 connected to USART of:
• ATmega32u4 @ 8MHz
• USB A male connector
• Whip or SMA antenna
• green LED
• dfu-bootloader - allows flashing firmware by using USB
• optional: plastic case

Documents

• TCM 310 – transceiver module
• Atmega32u4 manual

Firmware

• USB2TCM.hex - This will allow native access to TCM310 providing an emulated serial port (CDC ACM) on host PC ** @Windows: use this LUFA_USB2TCM.inf - Other OS will have native drivers. ** sources
• How to flash this device: **locate the PROGRAM button at the back of the module **keep it pressed while plugging the module in **run:

dfu-programmer atmega32u4 erase dfu-programmer atmega32u4 flash USB2TCM.hex dfu-programmer atmega32u4 reset

**optionally you may run: make dfu

Price and availability

This module is no longer available
