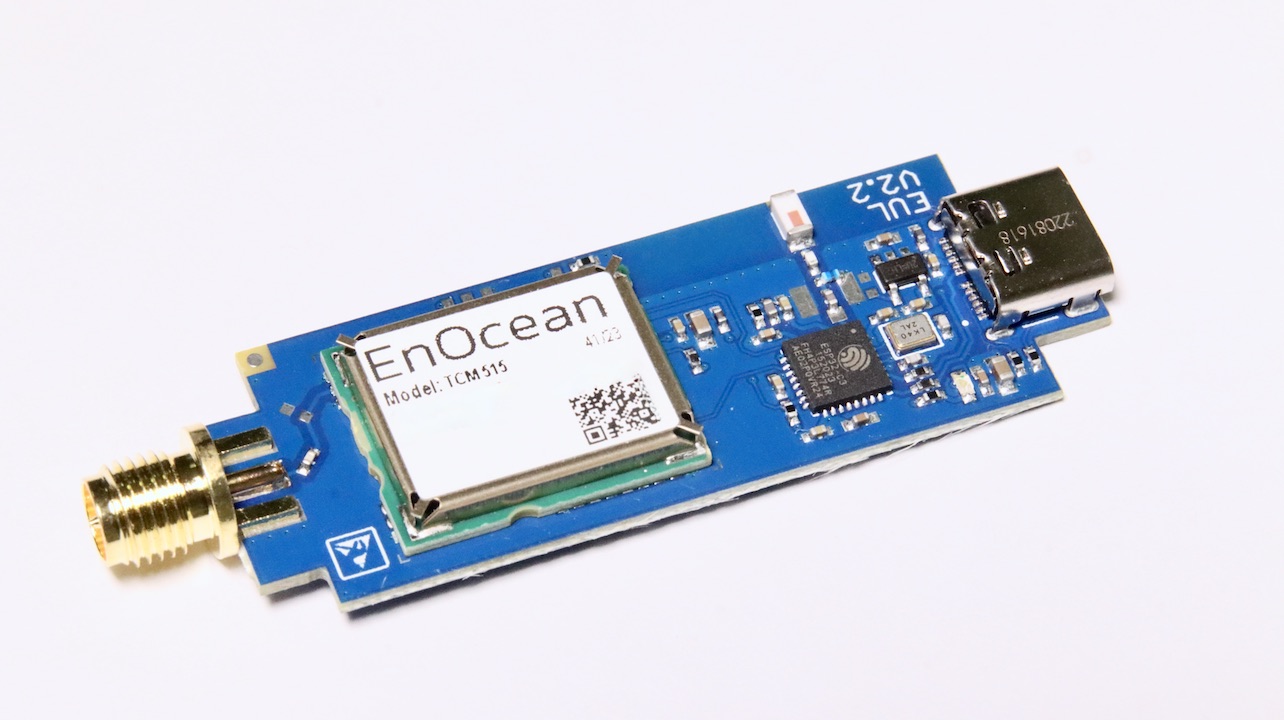

EUL - EnOcean USB/WLAN light - TCM515

General

This module glues an EnOcean TCM515 transceiver and ESP32 to USB 2.0 and WLAN . The freely programmable microcontroller allows any kind of USB device favours. This hardware is not just a serial-USB-bridge as many other EnOcean-USB-devices.

It replaces the old TCM310-based stick.

Have a look at this modules Image Gallery

Specs

• TCM515 connected to USART of:
• ESP32-C3
• USB C female connector
• Whip or SMA antenna
• blue LED
• bootloader - allows flashing firmware by using USB
• optional: plastic case

Documents

• schematics
• TCM515 transceiver

Firmware

• use: web browser-based EUL-Firmware Installer

USB-serial emulation: ** goto Firmware Installer page - and choose “USB-serial emulation” ** example source code: serial transparent example ** TCM will be available at /dev/ttyACMx. i.e. in FHEM use:

define ENO2 TCM ESP3 /dev/ttyACM0

simple WiFi-bridge: ** goto Firmware Installer page - and choose “WiFi-bridge” ** follow regular setup procedure - make sure you setup working WiFi connection and “visit device” to find its IP address ** Bridge will be mDNS-announced as “_tcm515._tcp” - avahi-browse _tcm515._tcp -rt ** TCM will be available at TCP port 2325. i.e. in FHEM use:

define ENO2 TCM ESP3 :2325

Tasmota TCP bridge: ** goto Firmware Installer page - and choose “Tasmota” ** follow regular Tasmota setup procedure ** finally goto “Auto-configuration” and choose “Busware EUL” from dropdown - (this will load this Configuration) ** TCM will be available at TCP port 2325. i.e. in FHEM use:

define ENO2 TCM ESP3 :2325

Home Assistant

We recommend the enoceanmqtt-addon

Price and availability

This module is available in our shop
