CUNX CUNX

Eingestellt / EOL

The CUNX is replacing the CUNO. Onewire has been opt-out by default, but can be added, if needed as PIGATOR module.

CUNX - CC1101 USB Network + eXpansion slot …

General

The CUNX is replacing the CUNO. Onewire has been opt-out by default, but can be added, if needed as PIGATOR module.

see:

• image gallery

Specs

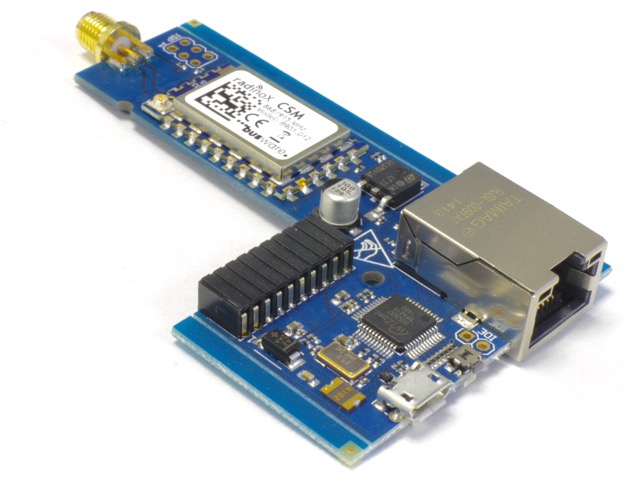

• xmega128a4u cpu @ 32MHz
• CC1101 @ 868MHz or 433MHz
• RP-SMA socket
• native USB supporting LUFA
• powered by microUSB socket
• 100MBit Ethernet - W5500
• DFU-bootloader w/ switch
• PIGATOR module slot
• aluminum enclousure

Firmware support

• The device is supported by “culfw v2”-firmware - see GitHub

Updating firmware

Press the “bootload” button in the middle of USB and network socket while powering up the device so the dfu bootloader will start. To load the firmware do:

dfu-programmer atxmega128a4u erase dfu-programmer atxmega128a4u flash CUNX.hex

Price and availability

This extension is available in our shop
