CUL-V2 CUL-V2
Eingestellt / EOL
This "dongle" will enable you to interface with ISM/SRD bands air data of any kind. The module contains a modern 8-bit Atmel for raw data pre-processing before
CC1101 - USB - Lite module - V2
General
This “dongle” will enable you to interface with ISM/SRD bands air data of any kind. The module contains a modern 8-bit Atmel for raw data pre-processing before passing it to the USB 2.0 interface or the powerful Texas Instruments transceiver.
To create your own applications you may use the avr-gcc.
The device ships with a DFU-bootloader. Use dfu-programmer to program it. Alternately you may solder yourself a FPC-socket to use serial ISP programming.

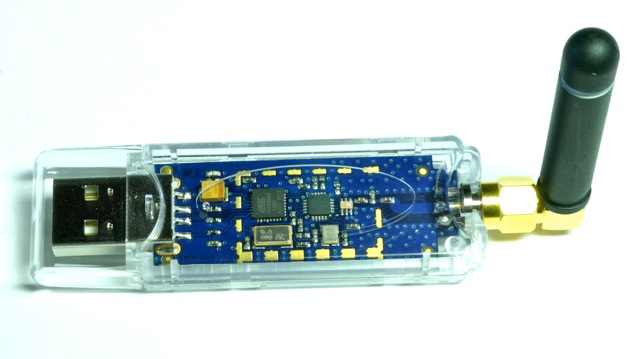

By default an lambda/4 wire antenna is connected. Nevertheless: the PCB contains a SMA-antenna-pinheader, where you may solder a “real” antenna if required.
The 868MHZ-HF-design follows TIs design note DN025.
Have a look at this modules Image Gallery and see a YouTube-video how a CUL-prototype is hand soldered.
More questions you might find answered in the modules FAQ
Specs
- AT90USB162 processor 8MHz @ 3.3V
- CC1101 ISM transceiver tuned for 868MHz or 433MHz
- pinheader for SMA / SMA-RP socket
- green multi purpose led
- multi purpose micro switch
- USB type A male connector
- optional ISP connector (FPC6)
- optional HF-shield
Documents
- CULV2X-Schematic (as PDF)
- CULV2 433Mhz-Schematic (as PDF)
- The CUL-FAQ
- ISM-Transceiver CC1101
- Atmel controller AT90USB162
Recommended tools/software
- avr-gcc
- dfu-programmer
- LUFA (MyUSB) - open source USB stack (for ie. serial communication)
Demonstration firmware
- USBSerialLink.hex (11.62 Kb) - Simple serial-USB datalink (two or more CUL required) using CC1101 capabilities
- ELFE.hex (32.16 Kb) - an ELV devices airtraffic (868MHz AM) decoder (FS20,FHT,EM,KS,HMS-protocols) The module does not require any special driver to run under Linux or MacOS. For Windows use this CUL.inf (1.38 Kb) How to load this/new firmware | Source code
3nd party firmware projects
- FHEM support for FS20 / FHT / EM / HMS protocols
- Ethernet support for CUL - “WLAN for cheap”
Links
- CUL fans - group discussion
Availability/Price
This module is not longer available.
