CC1101 based UART

CC1101-Serial-Module Former version 2 wiki page.

General

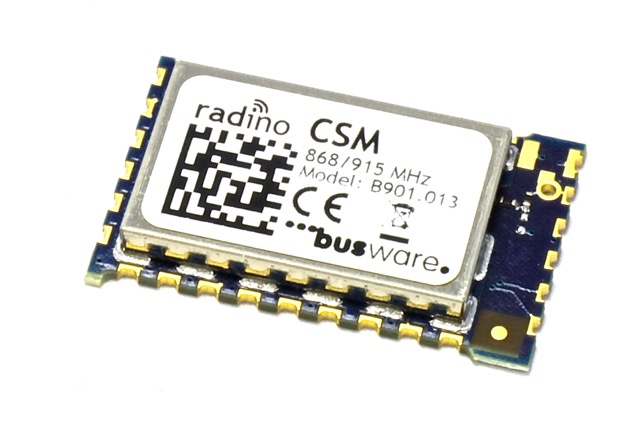

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data.

Have a look at this modules Image Gallery

Specs

3.3V operation
CC1101 transceiver tuned for 868MHz or 433MHz
ATmega32u4@8MHz
optional U.FL antenna connector
HF shield
dimensions: 28mm x 16.5mm x 2.8 mm
shipped with avr109-bootloader@38400Baud (pull pin 15 (/HWB) LOW during startup)

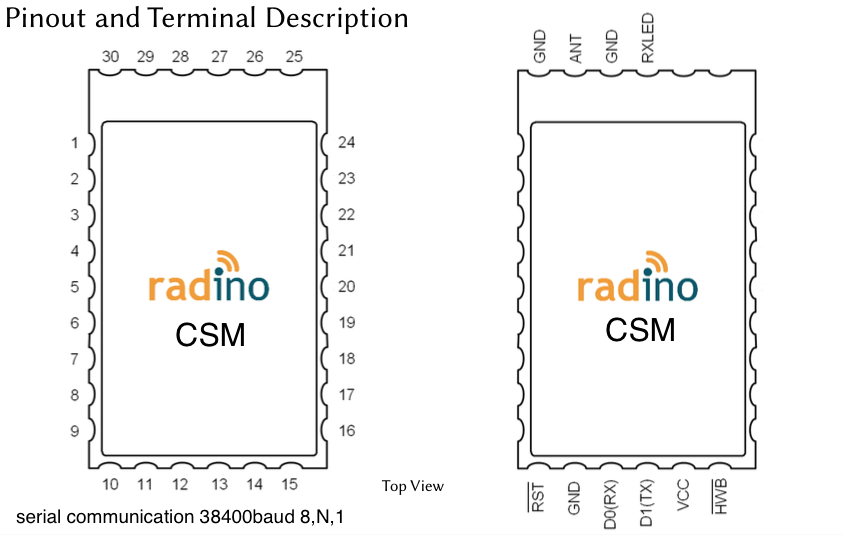

pin compatible with other RADINO radios

Documents

ISM-Transceiver CC1101
foot print (pattern land)

Application

NMC - Networked modul carrier
TuxRadio version 3

3nd party firmware projects

culfw.de - support for FS20 / FHT / EM / HMS / MAX! / Homematic protocols (SVN)

Availability/Price

This module is available in our shop for 29 Euros
