CSM-old CSM-OLD

Eingestellt / EOL

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data. Its I/O (VDD/RX/TX) can be co

CC1101 based UART

General

This module is intended to be used in other host systems, just providing an serial (UART) link with high level access to air data. Its I/O (VDD/RX/TX) can be connected to 3.3V or 5V systems. A optional RESET line will allow the host system to force bootloader access for firmware upgrades.

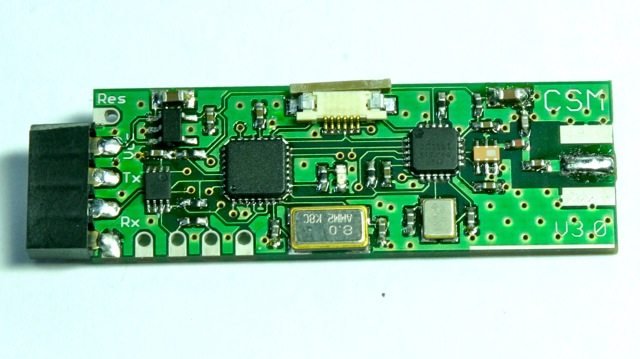

Have a look at this modules Image Gallery

Specs

• seamless 3.3 to 5.5 volt operation on all extern pins (VCC,TX,RX)
• CC1101 transceiver tuned for 868MHz
• ATmega88/168/328(P) @ 8MHz processor
• 3.3V core
• 6ISP (FPC) connector
• multipurpose LED

Documents

• ISM-Transceiver CC1101
• Schematic

Applications

• Pimp my LED ticker - make a LED ticker accessible wireless

3nd party firmware projects

• FHEM support for FS20 / FHT / EM / HMS protocols

Availability/Price

This module is no longer available in our shop
