The sensor board is aimed to collect several in-room data from its ceiling

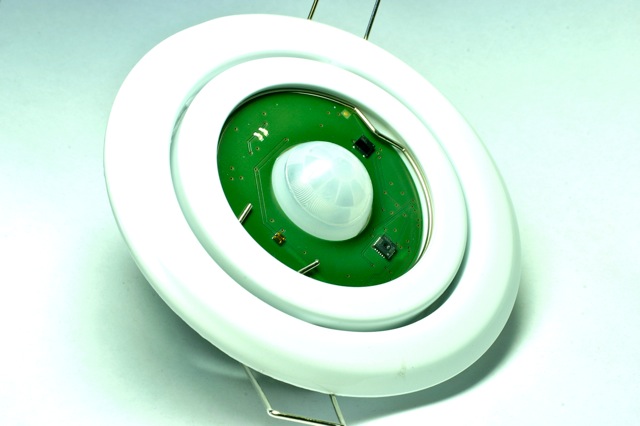

Ceiling Sensor Board

General

The sensor board is aimed to collect several in-room data from its ceiling

• see image gallery

Specs

• 50mm design to fit as MR15 lamp replacement
• m1284p processor @ 8MHz
• CC1101 radio transceiver
• RS485 interface @ RJ45 sockets
• AC/DC supply 6..20V (there is NO battery option due to current consumption)

Sensors:

• PIR

• Temperature/Humidity

• Brightness

• Infrared Receivers sensor 38KHZ

• Air pressure

• IR transmitter 850nm

• LED

Availability

The sensor will be available end of June in our shop.
