This universal transceiver module is as small as an Atmel ATTINY84 in a DIL14 package. Why an AVR ATTINY? Because the module can optionally carry this controlle
Universal CC1101 module (CM/CPM)
General
see CSM instead
This universal transceiver module is as small as an Atmel ATTINY84 in a DIL14 package. Why an AVR ATTINY? Because the module can optionally carry this controller. So you are free to utilize the CC1101 directly with your own SPI-enabled controller or you may program the onboard ATTINY to your needs - using its I/O.
Have a look at this modules Image Gallery
Specs
- DIL14 ATTINYx4 footprint
- CC1101 transceiver tuned for 868MHz or 433MHz

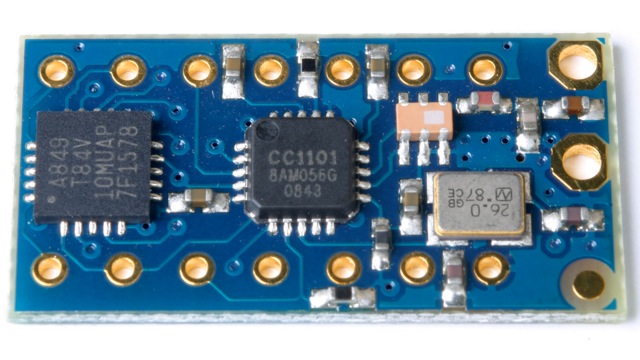

- onboard ATTINY84 processor
- 3.3V
Documents
- CPM Schematic
- CPM pinout / component placement
- CPM symbol
- ISM-Transceiver CC1101
- The CPM-FAQ
- CPM-Host Schematics
Availability/Price
This module is no longer available in our shop - see CSM instead
Application
* Brightness sensor:
(/img/tiki-108.jpg)

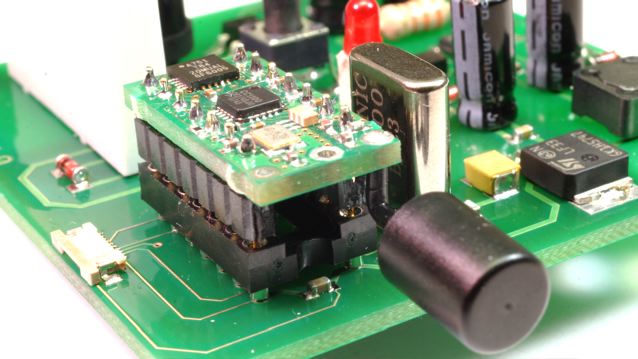

* Wireless switch:
