CCX CCX

Eingestellt / EOL

n/a

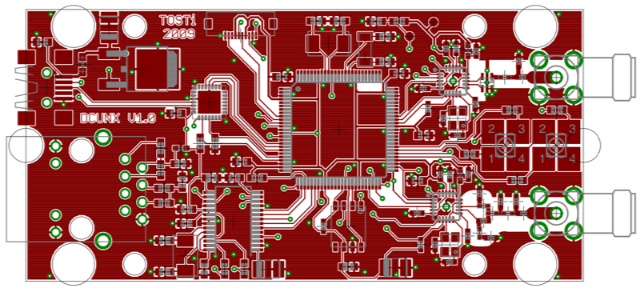

CC1101 with ATXmega

General

n/a

Specs

• ATXMEGA128A processor 32MHz @ 3.3V
• Dual CC1101 - ISM transceiver one fix tuned for 868MHz, one socket for additional CPM
• SMA sockets
• built-in Serial-2-USB bridge (CP2101)
• (opt) ENC28J60 ethernet
• (opt) Power-over-ethernet (PoE)
• (opt) ext. 2MB data flash
• (opt) ext. 8MB SDRAM
• two dual-color multi purpose leds
• MiniUSB / RJ45 sockets
• serial bootloader
• JTAG connector

Documents

• ISM-Transceiver CC1101

Software

• AtXmega serial Bootloader - to enable ie. avrdude uploads using serial link
