CC1101 - Clock - Display for Raspberry Pi

Click here for previous model CCDv1 pages

General

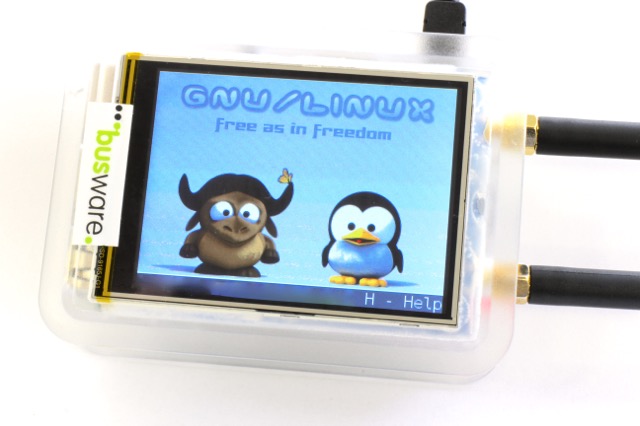

give your Pi a radio and “face” …

see image gallery

Specs

• CC1101 transceiver tuned for 868MHz w/ xmega co-processor
• PIGATOR expansion slot
• ILI9341 based 3.2” TFT Display (240x320) with resistive touchscreen (ADS7846) supported by fbtft
• DS1338-RealTimeClock with SuperCAP energy storage
• LIRC supported IR receiver (must use transparent case!)
• CCDv2 PCB now fits onto all Raspberry models
• milled TEK-BERRY+ enclosure for RPi+ or RPi2

Documents

• Installation guide

References

• Linux Framebuffer drivers for small TFT LCD display modules

Availability

This extension is available in our shop
