BAP is just-another-AVR-programmer ...

Busware - AVR - Programmer (BAP)

General

BAP is just-another-AVR-programmer …

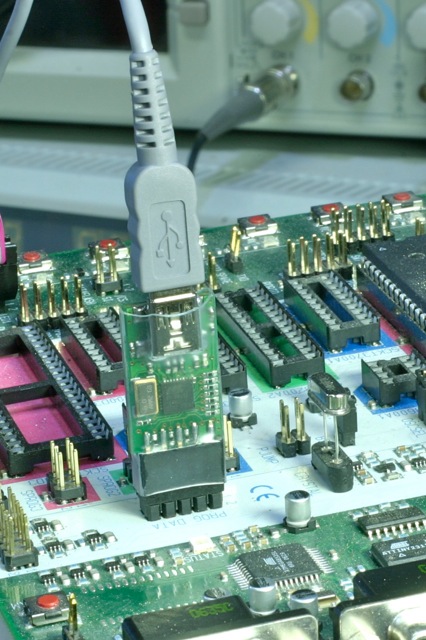

…but its so small that it will “direct connect your USB cable” to the ATMEL processor for programming:

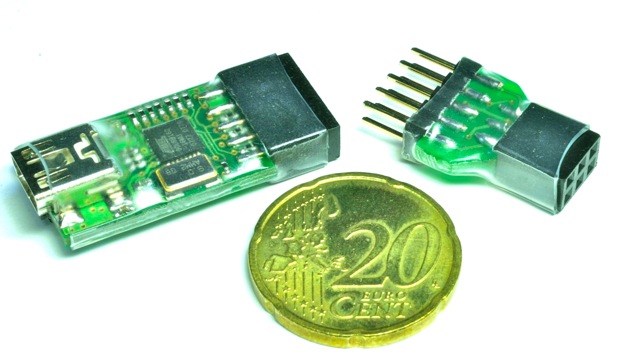

Nevertheless, the tiny board is equipped with a level changer allowing you to use BAP in enviorments down to 1.8 volt. The 10-pin-100mil connector is connected to SPI, UART and div. I/O - allowing you to create your own adapter boards, just using BAP as a USB gateway using open source LUFA USB-Stack.

BAP will not power the target board!

***** This project has turned into: Busware-USB-Interface BUI *****

Specs

• AT90USB162 8MHz@5V
• GTL2003 levelchanger
• Microswitch, LED

Firmware

• AVRISP.hex (15.15 Kb) - AVRISP-MKII clone (from source contained in LUFA-projects)

Documents

• Schematic (as PDF)
• Image Gallery
