ARDCSM ARDCSM

Eingestellt / EOL

This shield allows you to control all actors and sensors of either FS20, MAX!, Homematic, etc. - supported by http://culfw.de

CC1101 w/ co-processor shield for Arduino

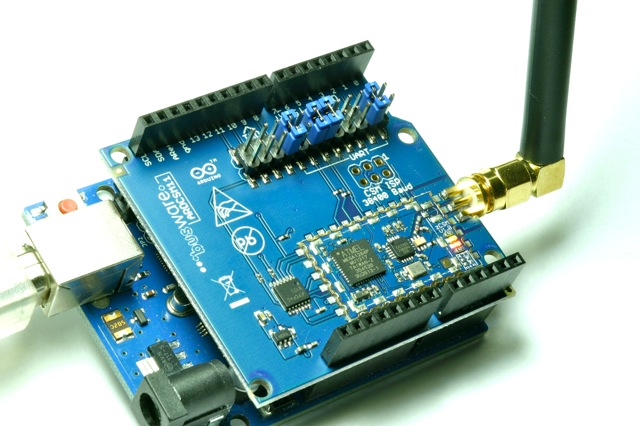

mounted shield with RP-SMA socket and antenna

General

End-Of-Life This shield allows you to control all actors and sensors of either FS20, MAX!, Homematic, etc. - supported by http://culfw.de

see image gallery

Specs

direct mount onto UNO/MEGA w/ sandwich connectors
CSM m1284p, CC1101@868MHz with culfw - optional ISP header
using serial communication by either Soft- or Real-UART port selectable by jumpers (RX at digital pins 8,9,10,11 - TX at digital pins 2,3,4,5)

Sketches

Demo sketch (as below)

Application

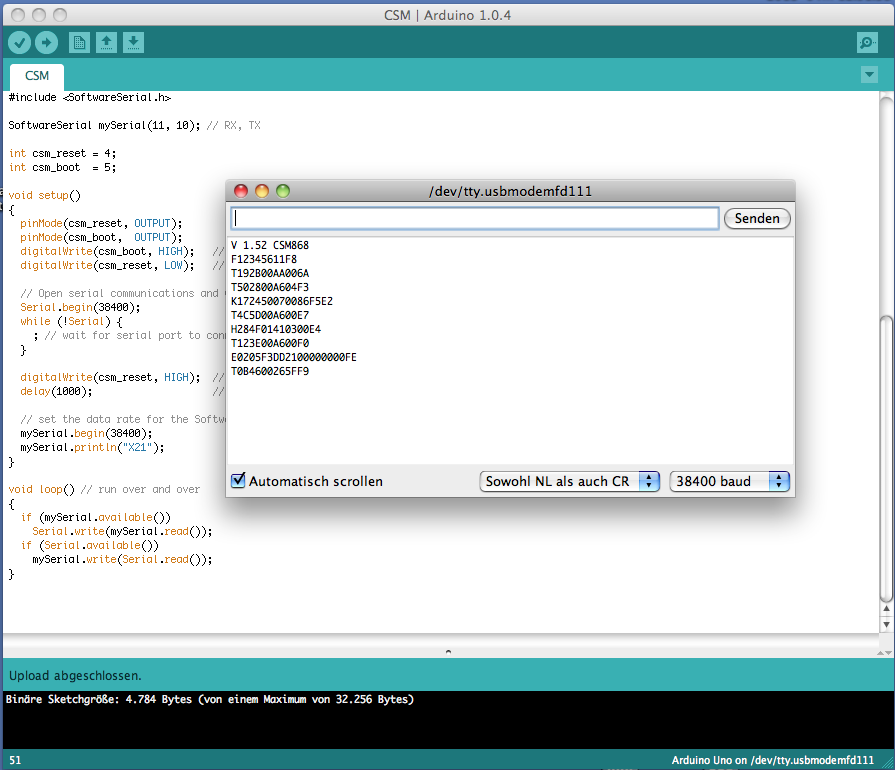

simple command forward

Availability

The shield is no longer available in our shop
