4S0ETH 4S0ETH

Eingestellt / EOL

Previous Logger Version 3 pages

4 channel S0-data logger with embedded Linux core

Previous Logger Version 3 pages

General

see SD0 instead

Have a look at this modules Image Gallery

Specs V5.1

• 4 x S0-interface after DIN 43864 EN 62053-31
• Input 5V DC - 3 Watt (2A Peak)
• TuxRail V2 processor board:

• i.mx233 cpu - 450MHz
• 64MB DDR RAM
• 4GB SSD (microSDHC)
• 10/100 Base-T ethernet
• dual USB 2.0

• buffered RTC with NVRAM
• multiple leds, switch

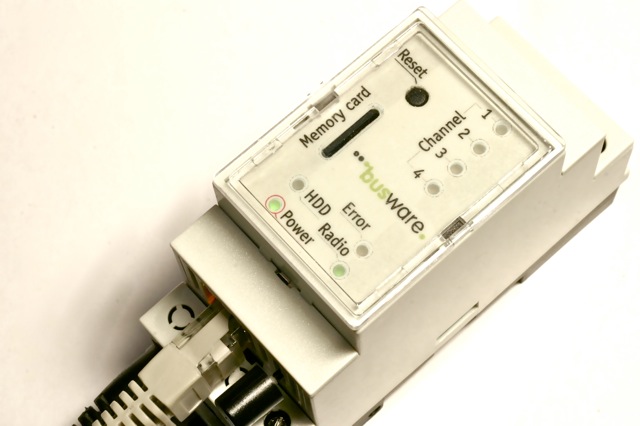

• fits into 2TE DIN rail case
• optional: 433/868/2400 MHz radio socket - see: CSM
• optional: UMTS/HSDPA/GPRS interface
• optional: WLAN interface (ie: EW-7711 series)
• optional: USB Memory

Documents

• Schematics
• Placement top
• Placement bottom
• Webinterface commands
• How to prepare a microSD card: Read this

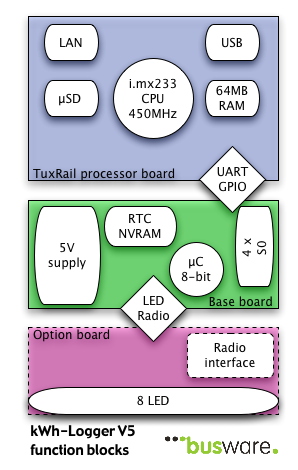

• Functional overview:

supported devices

• Electricity: Power meters with S0 Interface
• Water: Flow meters with Reed-contact
• Radio power meters (with optional radio modul installed) - series: EM1000 and ESA

OS

• full featured Debian Squeeze - Linux 2.6.31

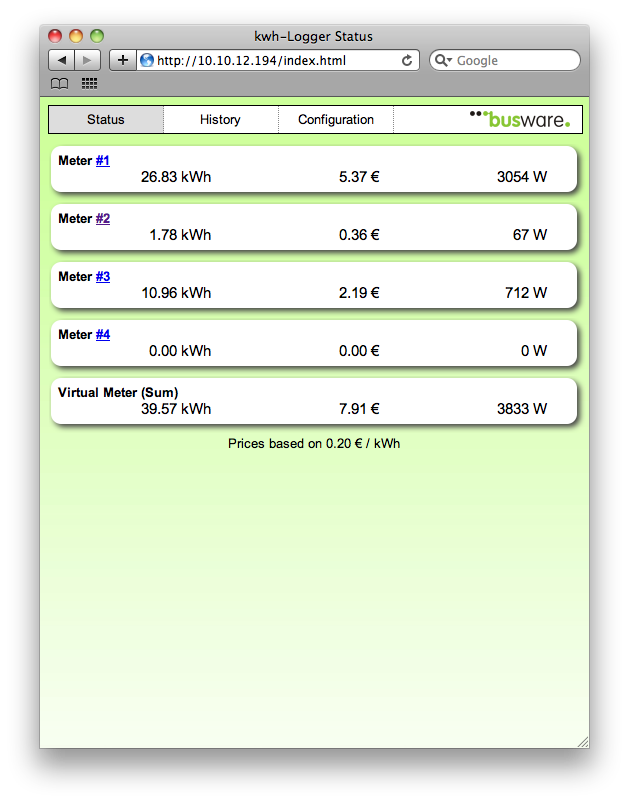

Screenshots

This simple demo is included when shipped.

Availability/Price

MOQ: 50 - B2B sale only - lead time: 6 weeks

Third party software - http://www.s0control.de/

This software is going to be installed directly at the logger. There is no additional PC required. You access this frontend using an ordinary web browser.

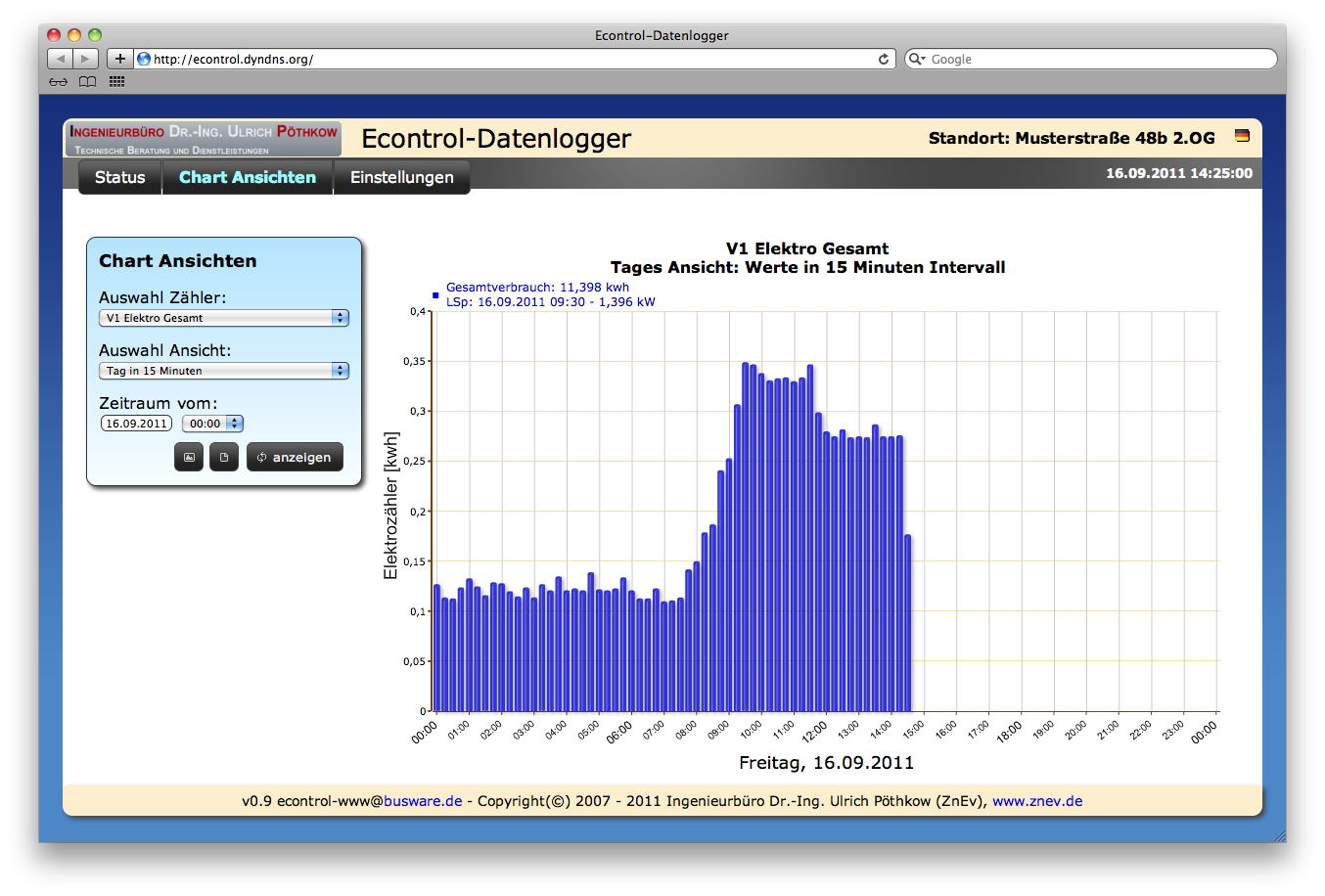

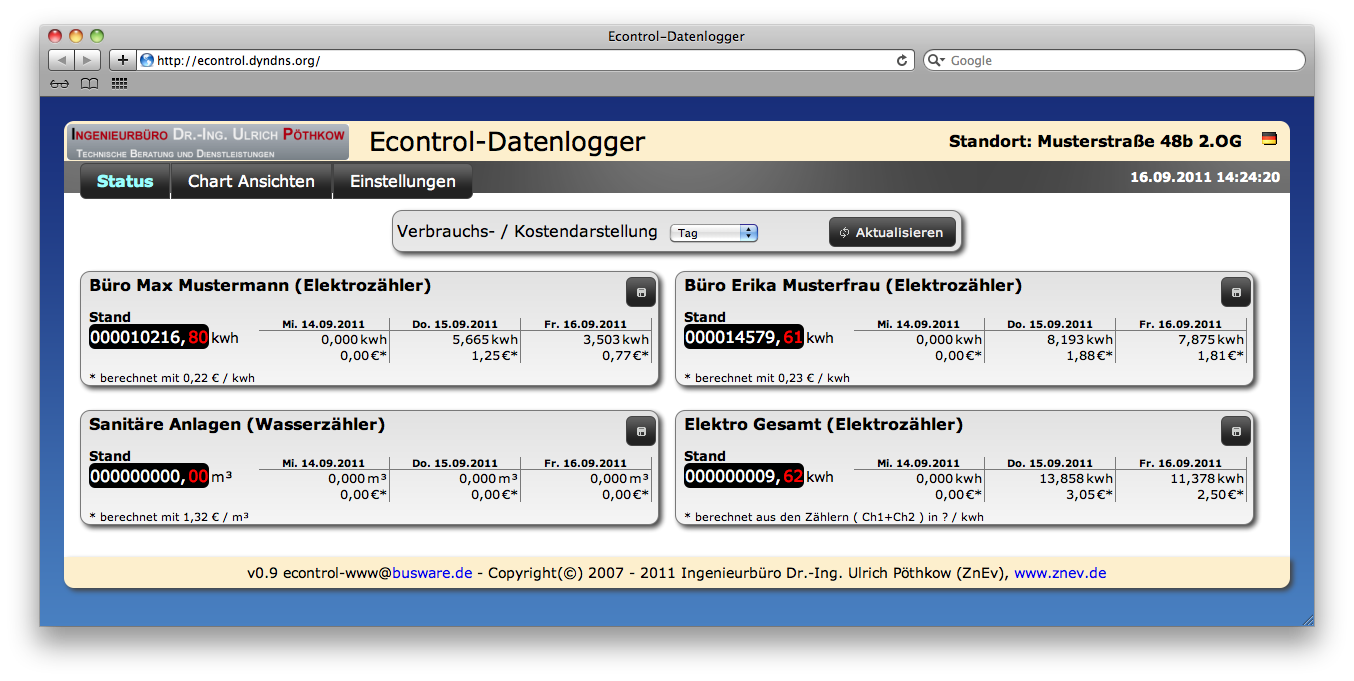

Live demo (in Kiosk mode)

• Basic Version -> http://s0control.dyndns.org
• HTNT Version -> http://htnt-demo.s0control.dyndns.org
• Usermode Username/Password: user/user
• Adminmode Username/Password: admin/admin
• Manual

Please contact Ingenieurbüro Dr.-Ing. Ulrich Pöthkow (ZnEv), s0control@znev.de for inquiries directly.
